NEC M300XSG LCD Short Throw Projector



EB-W10



5 Year Warranty



Your Price: $1250

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available

[Order Now]


M300WSG

Ultra short throw projectors with up to 3500 lumens*, able to install in any location, providing a large screen at a short range.

An ultra short throw projector that can be installed and used anywhere

Ultra short throw projection optimal for classrooms and meeting areas
Thanks to the ultra short throw lens, the M350XS, M300XS and M260XS can project large 60-inch images from a short range of about 57cm. The projector takes little space and is easy to setup.

M300WSG

A geometric correction function to enable projection to a screen on an angle*
*Use the included Image Express Utility Lite software

High-brightness display of 3500 lumens (M350XS)
The M350XS is an ultra short throw projector that achieves a high brightness of 3500 lumens. This makes it possible to use the projector without turning off room lighting so you can see documents in your hand while participating in a meeting.

Built-in monaural speaker with a powerful 10 W output that provides excellent sound even in classrooms and conference rooms

Designed for a low noise level of 29dB* (in Eco Mode) that doesn’t disturb conferences or lessons
The RPM of the fan has been reduced and operation noises have been suppressed for a substantial reduction in noise.
* For M300XS/M260XS/M260WS

Advanced functionality designed for ease of operation

A USB display function for simple connection with a single USB cable
The USB display function lets you connect the projector and a computer with a standard USB cable to easily project computer screen images without computer cables.

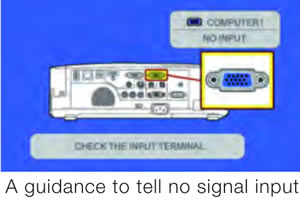

“No-signal guidance” for easy cable connections
When there is no signal being input, the “No-signal guidance” display appears on the screen. Since you know in a glance where the cable should be inserted, your setup runs smoothly.

Supports Virtual Remote Tool for operation of projectors from a computer

*Use the included Virtual Remote Tool software.

The Quick Start function starts projection a mere 3 seconds after the power is switched on

Quick Cooling and Direct Power Off for speedy clean-up and transfer after use

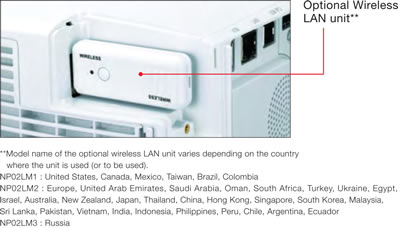

Images can be sent over a LAN using the wired/wireless LAN option*
*Use the included Image Express Utility Lite software

Front ventilation for effective heat dissipation

Added functions for the economical use of energy and the reduction of total cost of ownership

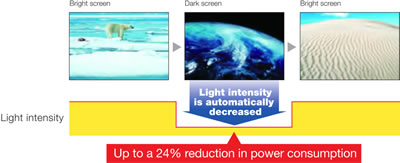

Equipped with an automatic Eco Mode to automatically control picture brightness

Eco Mode reduces light intensity automatically and imperceptibly when switching from white screens like charts or bright images to a dark screen or image. This function can reduce the power consumption by up to 24%.Both the projector and its remote are equipped with an Eco button for easy setting of Eco Mode. Eco2 Mode*, which is convenient when it's too bright during small screen projection.

*ECO2 Mode is available on M260XS.

Lengthen lamp lifetime
Using Eco Mode can increase the lamp lifetime to 6000 hours*.
Furthermore, the low-energy design keeps power consumption to 0.2W (100-130V AC)/0.4W (200-240V AC) during standby (Power-saving Mode), which helps reduce total cost of ownership.
*For M260XS. This is not a guaranteed value.

Equipped with a large, maintenance-free filter
The large filter has the two-layer construction. It provides excellent dust protection and eliminates the need for regular cleaning. Just replace the filter when you change the lamp.


Specifications
Optical
Display Technology 0.63" LCD w/ MLA
Light Output(Lumens) 3000 normal / Eco = approx. 75% of normal mode
Resolution
Native XGA 1024 x 768
Maximum UXGA 1600 x 1200

Contrast Ratio (up to) 2000:1
Lamp Type 230W AC / 170W eco
Lamp Life (up to) 4000 hours normal / 5000 hours eco
Screen Size (diagonal) 60 to 110 in. / 1.52 to 2.79m
Throw Ratio 0.48 to 1
Projection Distance 1.9 to 3.6 ft. / 0.57 to 11m
Projector Angle 37.3° tele / 38.6° wide
Lens
Zoom 1.2
Focus Manual
F number, fnumber F=2, f=6.4mm

Keystone Correction Automatic or manual +/- 20°

Signal Compatibility/Connectivity
Scan Rate
Horizontal 15-100 kHz
Vertical 50-120 Hz

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E)
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility Yes
Input/Output Terminals
RGB1(analog) VGA 15-pin D-sub
RGB2(analog) VGA 15-pin D-sub
RGB3(digital) HDMI
Video 1 RCA
Video 2 S-Video
Audio 1 1/8 in. stereo
Monitor out VGA 15-pin D-sub
Audio out Yes (variable)

Audio  10W speaker
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity Separate Sync / Composite Sync / Sync on G
Networking RJ-45 Monitoring


Electrical
Power Requirements 100-240V AC, 50/60 Hz
Input Current 3.4A/1.5A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 311W / 239W / 8W / 0.2W


Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 15.7 x 12.2 x 5.5 in. / 398 x 309 x 140mm
Net Weight 8.8 lbs. / 4 kgPounds (lbs.)
Fan Noise 35 dB normal / 29 dB eco
Regulations UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993


Environmental
Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -14-122°F / -10-50°C


Limited Warranty
2 years


Additional Features
  • Automatic keystone correction
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Kensington lock slot
  • Image magnification
  • Discreet source keys


Ships With
  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Lens cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Security Sticker
Supplied Accessories
Remote

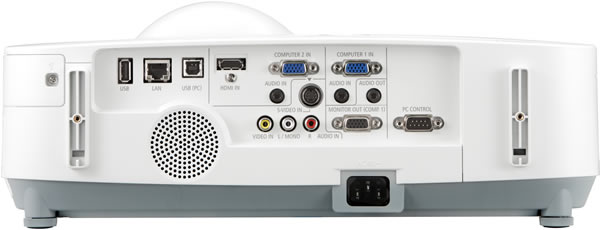

Rear Panel

EB-W10 Rear



Optional Accessories

Logitech R400 Wireless Presentation Remote
Your Price:
$99.95

FEATURES
Great for Microsoft Power Point Presentations, featuring:
• Inbuilt Laser Pointer
• 15 Metre Range
• Forward/Back Slide control

- Windows Only not Mac Compatible
[More Information]

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


Normally $129.95

[Order Now]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
Your Price:
$149


[Order Now]



Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


NEC Wireless Adapter NP02LM For M / P / PA / PX Series Projectors
Your Price:
$149

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

• Windows 2000, Windows Vista, Windows XP Compatible.
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
Not Mac Compatible.



[Order Now]


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95

SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player




[Order Now]


HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95

[Order Now]

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

[Order Now]

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
