Optoma EW631 DLP Multipurpose Widescreen Projector
|
|
|
 |
 |
|
FOR CURRENT OPTOMA PROJECTORS CLICK HERE
|
3,500 ANSI Lumens &
10,000:1 Native High Contrast
Brilliant optical design gives exceptiona performancel in providing high brightness & crystal-clear native high contrast, ideal for classrooms/ conference rooms with a capacity of 20–40 people. |
 |
1.07 Billion Display Colors
Incorporated with Texas Instruments’ latest DDP2430 scaler to realize true 10-bit signal processing. The new 10 bit color processing technology increases the number colors that can be display from 134.2 million to 1.07 billion, presenting more natural and vibrant pictures. |
 |
 |
TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience. |
Environmentally Friendly
All new lamp and optical design provides longer lamp-life of 6000hrs. |
 |
6 Segments Color Wheel
Produces 3X Color Wheel Rotation Speed projectors support PAL video signals in movie mode, which operate at only 50 Hz frequency. Under this low frequency, projector increases the speed of the color wheel rotation from 2X (7200 rpm) to 3X (10800 rpm) resulting in consistent colors and seamless video playback.
Remote Management
Control multiple projectors by wire via directly or RS-232 hub with projector ID.
Eco+ mode
This is an extension of Eco mode that has a positive effect on lamp time which results in lower total cost of ownership and less maintenance. When Eco+ mode is activated, the projector automatically detects the brightness level of the contect and dynamically reduces the lamps power consumption up to 70%. Depending on the image being displayed the brightness level adjusts from 100% for bright scense down to 30% for darker scenes. |
 |
|
Quick Resume
Save time by not waiting for the projector to cool down before it can power up again. If the projector is accidently turned off, this feature allows the projector to be Instantly powered on again, if selected within a period of 100 seconds. |
Environmentally Friendly
Enabling the <0.5W Standby mode will ensure the minimum energy consumption when the projector is not being used.

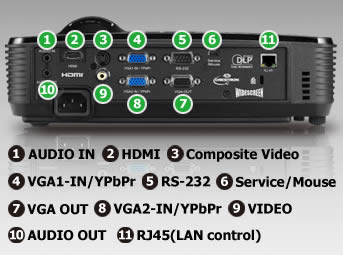

Complete I/O support
 |
3D Projection (3D Ready)
The DLP-based EW631 3D ready is compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
EW631 is 3D Ready with DLP 3D Link Only.
Bluray 3D and
nVidia 3D is not compatible |
|
|
|
Specifications
| Display Technology |
Single 0.65” WXGA DLP® Technology by Texas Instruments |
| Native Resolution |
WXGA 1280 x 800 |
| Brightness - BRIGHT mode1 |
3500 ANSI Lumens |
| Contrast |
10,000:1 |
| Noise Level |
29dB (ECO+ mode) |
| Weight |
2.2 kg |
| I/O Connectors |
| Inputs: |
HDMI (HDCP) - audio supported, 2 x 15 Pin D-Sub VGA, Component via adaptor, S-Video 4 Pin Mini Din, Composite RCA, 3.5mm Audio Mini Jack, USB (remote mouse) |
| Outputs: |
15 Pin D-Sub VGA, 3.5mm Audio Mini Jackk |
| Control: |
RS232 - 9 Pin D-sub, RJ45 |
|
| Maximum Resolution |
UXGA 1600 x 1200 |
| Computer Compatibility |
UXGA, SXGA, XGA, SVGA, VGA, Mac |
| Video Compatibility |
PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| Displayable Colours |
1.07 Billion |
| Projection Lens |
F/2.57~2.84; f=21~25.6mm, 1.2x Manual Zoom |
| Throw Ratio |
1.47 - 1.81:1 (Projection Distance:Image Width) |
| Projection Screen Size |
0.78 – 8.02m (30.78” to 315.83”) Diagonal 16:10 |
| Projection Distance |
1.2 - 10 metres |
| Horizontal Scan Rate |
15.3 - 91.1kHz |
| Vertical Scan Rate |
24 - 120Hz |
| Lamp Type/Lamp Life2 |
6000/5000/3500 (Eco+/Eco/Bright mode) |
| Keystone Correction |
± 40° Vertical |
| Audio |
10W |
| Dimensions (W x D x H) |
280 x 230 x 77mm |
| Remote Control |
Full function remote with laser pointer, mouse control and direct source selecting |
| Power Supply |
100-240V, 50-60Hz |
| Power Consumption |
285W BRIGHT mode < 0.5W Standby mode 230W ECO mode < 0.5W Standby mode 200W ECO+ mode < 0.5W Standby |
| Operating Conditions |
5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
| Uniformity |
85% |
| Security |
Security Bar, Kensington Lock, Password Protection |
| Standard Accessories |
Soft Carry Bag, AC Power Cord, VGA Cable, Full Function Remote, Batteries x 2, Quick Start Guide, CD User Manual, Warranty Card |
| RoHS |
Compliant |
| 3D Support |
120Hz frame sequential 3D for resolutions up to 720p
60Hz field sequential 3D for resolutions up to 480i |
| 3D Viewing |
Requires Optoma DLP® LinkTM active shutter glasses – sold separately |
| 3D Compatibility |
The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. Support for 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D Games from a PS3 or Xbox360 will require the Optoma 3D-XL that is available separately. |
