Sanyo PLC-WXU300A High Brightness Widescreen LCD Projector




DISCONTINUED
FOR CURRENT SANYO PROJECTORS CLICK HERE


A Great Match For Widescreen PC's
The wide XGA 1280 x 800 (16:10) resolution of the PLC-WXU300 makes it possible to project high quality HD images from virtually any location, The PLC-WXU300 achieves a high 2500 lumens of brightness thanks to a number of advanced technologies in its optical engine and a 255-watt lamp.

Easy Setup Function

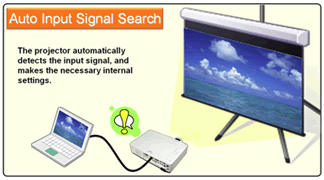

- ‘Auto Input Signal Search’ function automatically performs the projector input settings

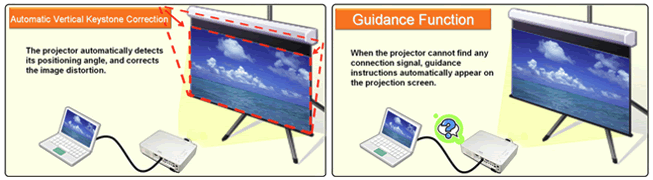

- ‘Auto Vertical Keystone Correction’ function automatically eliminates vertical distortion.
- ‘Guidance Function’ displays connection instructions on the projection screen when no signal is detected, enabling easy setup even for the novice users

Built In Loud 7 Watt Speaker
- Built-in powerful ‘7W Speaker’, allows multimedia presentations that include audio
- Makes presentations easier and more professional, loud enough for everyone to hear

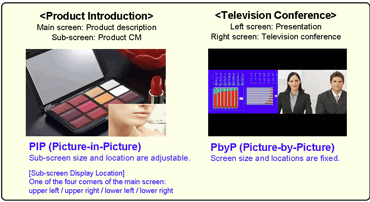

Picture In Picture Mode and Picture By Picture Mode
‘Picture-in-Picture Mode’ and ‘Picture-by-Picture Mode’ can project two images simultaneously, allowing two sources to be viewed to introduce a product or point.

Wide Range 1.6x Zoom
The wide-range 1.6x zoom lens lets you project a 100" image from as close as 2.5 meters (8.3 ft) from the screen, to as far away as 4.1 meters (13.5 ft), That makes it a lot easier to find suitable places to set the projector up.


Specifications

Panel 0.59 inch TFT p-Si x 3 with Micro Lens
Number of pixels 3,072,000 (1280 x 800 dots)
Lamp wattage 225W
Expectation of lamp life (Life Survival ratio 50%, Maintenance integral 50%), Normal 2000h / Eco 2500 h
Brightness (typical) 2500 lm
Contract 500:1
Uniformity 85% (from corner to center)
Projection lens F1.65 - 2.33, f=15.47~24.53mm
Screen size 30” ~ 300 ”, 0.74m (wide) ~ 7.67m (wide); 100” at 2.54 ~ 4.11m
Zoom / Focus 1:1.6 Manual driven; U:D = 49:1
SD/HDTV signals Analog: 480i / 480p / 575i / 575p / 720p (50/60) / 1080i (50/60), HDMI : 480p / 575p / 720p (50/60) / 1080i (50/60) / 1080p (50/60)
Colour systems PAL / SECAM / NTSC / NTSC4.43 / PAL-M/PAL-N
Video signal S-Video, Composite, Dsub-15pin for Component
Terminal RCA for Composite Video, Mini-DIN 4 for S-Video, Dsub-15 for Component, HDMI for Digital
Computer compatibility (WUXGA/WSXGA)WXGA/XGA/SVGA/VGA/MAC
Terminal Dsub-15 and HDMI for Input, Monitor Output
Audio RCA (L/R) for Video Input, Mini-Jack x 2 (Stereo) for Computer Input, Mini-Jack (Stereo) for output (variable)
Communication terminal Dsub-9 for Control Port (RS-232C), RJ-45 for LAN
Presentation tool Freeze / Digital Zoom / No Show / Picture by Picture / etc
Other features Progressive, 3-2 & 2-2 pull down, LTI & CTI, User Logo
Scanning frequency H/V sync ~100kHz, ~100Hz; Dot clock 140 MHz
Sound output 7.0 W Mono
Fan noise 29 dBA
Voltage 100V-240V AC (auto voltage)
Power consumption 100-120V AC: 311W (Normal) / 225W (Eco), 200-240V AC: 291W (Normal) / 213W (Eco)
Dimensions (W x H x D) 326 x 83.1 x 231.6mm
Weight 2.8kg
