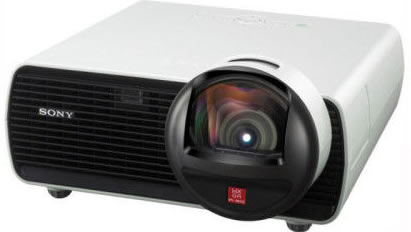

Sony VPL-SW125 Short Throw Widescreen Projector



For the current Sony Range Click here

The VPL-SX125 XGA projector is an ideal choice for close projection applications in the corporate and educational markets. This projector offers:

The model has a low brightness mode which reduces power consumption and extends the lamp lifetime to approximately 6000 hours, which means lower operating costs across the board.

This projector is easy to install in small or difficult spaces, and has easy to operate controls.

VPLSX125 Short Throw

VPLSX125 Short Throw

Excellent contrast, consistent colour stability, high picture quality and longer durability will improve visibility and enhance teaching quality.


Maximum 2500 lumens brightness with High, Standard and Low modes
The VPL-SX125 features three brightness modes for different use – ’High’ for naturally white presentations in bright rooms, ’Standard’ for everyday use, and ’Low’ for video in darkened rooms.

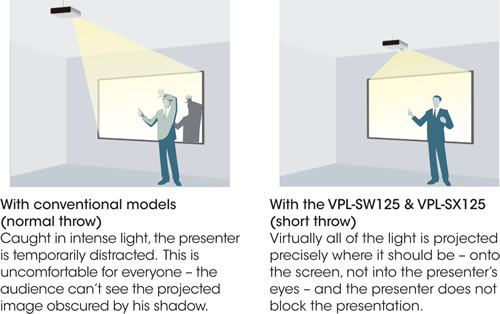

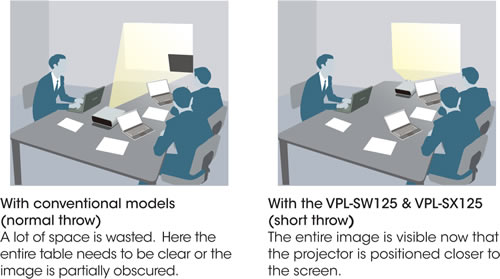

0.62 throw ratio
The VPL-SX125 offers a 0.62:1 throw ratio that produces a 2.03M (80”) diagonal screen size image from only 1.0M (3.2 feet) away from the screen.

3LCD BrightEra Technology
Sony’s 0.63 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.

WXGA Widescreen Resolution
The VPL-SW125 has a colour light output of 2600 ANSI lumens and with a native WXGA (1280 x 800) widescreen resolution panel is perfect for video or presentations direct from a laptop or PC.

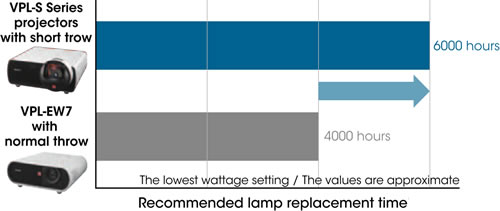

6000 hours Lamp Life
New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding.

VPLSX125 Lamp Life

Eco Mode Key
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.

Front Exhaust
With a front exhaust system, users sitting behind the projector are not affected by expelled hot air and fan noise.

Easy to operate control panel layout
The VPL-SX125’s control panel is on top of the devicefor easy operation, with large, easy-to-locate controls.

Automatic Keystone Adjustment
The projector can detect keystone distortion and can correct it automatically. (Note that since this is an electronic correction, it may reduce the picture quality slightly).

Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually.

Auto Input Search
Auto Input Search detects which input has an incoming signal, and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.

Picture Muting
If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate “mute audio” button for audio-only muting.

Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.

Picture Freeze Function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.

Digital Zoom
With Digital Zoom, if you are displaying a computersourced image, you can enlarge a selected area of thescreen image up to four times.




Display system

3 LCD system

Display device

Size of effective display area

0.59” (15.0 mm) x 3, BrightEra, Aspect ratio: 16:10

Number of pixels

3,072,000 (1280 x 800 x 3) pixels

Projection lens





Ultra High Pressure lamp 210 W type

Recommended lamp replacement time*1

3000 H / 4500 H / 6000 H (Lamp mode: High / Standard / Low)

Filter cleaning cycle

Max. 6000 H*1 / Same time as the lamp replacement is recommended

Screen size

50” to 110” (1.27 m to 2.794 m)

Light output (Lamp mode: High / Standard / Low)

2600 lm / 1800 lm / 1400 lm

Colour light output (Lamp mode: High / Standard / Low)

2600 lm / 1800 lm / 1400 lm

Contrast ratio (full white / full black)*2



1 W x 1 (monaural)

Displayable scanning frequency


19 kHz to 92 kHz


48 Hz to 92 Hz

Display resolution

Computer signal input

Maximum input signal resolution: 1400 x 1050 (resizing display) Panel display resolution: 1280 x 800 pixels

Video signal input

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

Colour system


Keystone correction

Vertical: Max. +/- 15 degrees*3

OSD language

20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi)

Computer and video signal input/output


RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack





Video input connector: Pin jack, Audio input connector: Pin jack (x2) (shared with S-VIDEO IN)


S video input connector: Mini DIN-4 pin Audio input connector: Pin jack (x2) (shared with VIDEO IN)


Monitor output connector*4: Mini D-sub 15-pin (female), Audio output connector*5: Stereo mini jack (variable out)

Control signal input/output

RS-232C connector: D-sub 9-pin (female)

LAN connector: RJ45, 10BASE-T/100BASE-TX

Operating temperature (Operating humidity)

0°C to 40°C / 32°F to 104°F (20% to 80%; no condensation)

Storage temperature (Storage humidity)

(-10°C to 60°C / 14°F to 140°F) (20% to 80%; no condensation)

Power requirements

AC 100 V to 240 V, 3.0 A to 1.3 A, 50 Hz /60 Hz

Power consumption

AC 100 V to 120 V

290 W / 240 W / 205 W

AC 220 V to 240 V

275 W / 225 W / 190 W

Standby mode power consumption

AC 100 V to 120 V

3 W / <1.0 W (Standby mode: Standard / Low)

AC 220 V to 240 V

3 W / <1.0 W (Standby mode: Standard / Low)

Heat dissipation

AC 100 V to 120 V

990 BTU

AC 220 V to 240 V

940 BTU

Outside dimensions

W 313.4 x H 160.3 x D 349.3 mm / W 12 11/32  x H 6 5/16  x D 13 3/4 in W 313.4 x H 144.9 x D 349.3 mm / W 12 11/32  x H 5 23/32 x D 13 3/4 in (without protrusion)


3.7kg / 8lb 3oz

Supplied Accessories


Remote Commander (1)


Lithium Battery (1)

Mini D-sub 15-pin cable (1)

Lens Cap (1)

Operating Instructions (1)

Quick Reference Manual (1)

AC power cord (1)

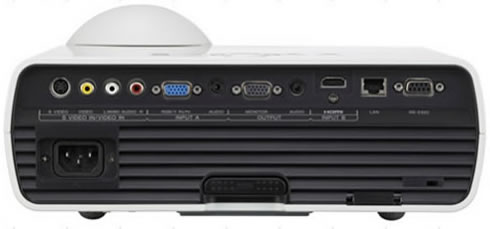

Rear Panel
VPL-SW125 Rear


Optional Accessories

Premium VGA to Component Adapter Cable HD15RCA3
Your Price:


• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player

VGA Cable

Premium VGA Monitor Cable

5 Metres
10 Metres
15 Metres
20 Metres
30 Metres

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors

HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
5 Metres
10 Metres
15 Metres
20 Metres

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty
