Sony VPL-SX125 Short Throw Projector

VPL-SX125




Sony Logo


DISCONTINUED

For the current Sony Range Click here

The VPL-SX125 XGA projector is an ideal choice for close projection applications in the corporate and educational markets. This projector offers:

LOW TOTAL COST OF OWNERSHIP
The model has a low brightness mode which reduces power consumption and extends the lamp lifetime to approximately 6000 hours, which means lower operating costs across the board.

EASE OF OPERATION
This projector is easy to install in small or difficult spaces, and has easy to operate controls.

VPLSX125 Short Throw

VPLSX125 Short Throw

BRIGHT, CLEAR PRESENTATIONS
Excellent contrast, consistent colour stability, high picture quality and longer durability will improve visibility and enhance teaching quality.

Features

Maximum 2500 lumens brightness with High, Standard and Low modes
The VPL-SX125 features three brightness modes for different use – ’High’ for naturally white presentations in bright rooms, ’Standard’ for everyday use, and ’Low’ for video in darkened rooms.

0.62 throw ratio
The VPL-SX125 offers a 0.62:1 throw ratio that produces a 2.03M (80”) diagonal screen size image from only 1.0M (3.2 feet) away from the screen.

3LCD BrightEra Technology
Sony’s 0.63 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.

XGA Widescreen Resolution
The VPL-SX125 has a colour light output of 2500 ANSI lumens and with a native XGA (1024 x 768) 4:3 screen resolution panel is perfect for presentations direct from a laptop or PC.

6000 hours Lamp Life
New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding.

VPLSX125 Lamp Life

Eco Mode Key
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.

Front Exhaust
With a front exhaust system, users sitting behind the projector are not affected by expelled hot air and fan noise.

Easy to operate control panel layout
The VPL-SX125’s control panel is on top of the devicefor easy operation, with large, easy-to-locate controls.

Automatic Keystone Adjustment
The projector can detect keystone distortion and can correct it automatically. (Note that since this is an electronic correction, it may reduce the picture quality slightly).

Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually.

Auto Input Search
Auto Input Search detects which input has an incoming signal, and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.

Picture Muting
If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate “mute audio” button for audio-only muting.

Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.

Picture Freeze Function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.

Digital Zoom
With Digital Zoom, if you are displaying a computersourced image, you can enlarge a selected area of thescreen image up to four times.

Projector Screen Bundle




Specifications

General

Display system

3 LCD system

Display device

Size of effective display area

0.63” (16.0 mm) x 3, BrightEra, Aspect ratio: 4:3

Number of pixels

2,359,296 (1024 x 768 x 3) pixels

Projection lens

Zoom

-

Focus

Manual

Light source

High-pressure mercury lamp 210 W type

Recommended lamp replacement time*1

3000 H / 4500 H / 6000 H (Lamp mode: High / Standard / Low)

Filter cleaning cycle

Max. 6000 H*1 / Same time as the lamp replacement is recommended

Screen size

50” to 100” (1.27 m to 2.54 m)

Light output (Lamp mode: High / Standard / Low)

2500 lm / 2100 lm / 1700 lm

Color light output

2500 lm / 2100 lm / 1700 lm

Contrast ratio (full white / full black)*3

3800:1

Speaker

1 W x 1 (monaural)

Displayable scanning frequency

Horizontal

14 kHz to 93 kHz

Vertical

47 Hz to 93 Hz

Display resolution

Computer signal input

Maximum input signal resolution: 1600 x 1200 (resizing display), Panel display resolution: 1024 x 768 pixels

Video signal input

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

Color system

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction

Vertical: Max. +/- 15 degrees*4

OSD language

20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)

Computer and video signal input/output

INPUT A

RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack

INPUT B

RGB input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack

S VIDEO IN

S video input connector: Mini DIN 4-pin, Audio input connector: Pin jack (x2) (shared with VIDEO IN)

VIDEO IN

Video input connector: Pin jack, Audio input connector: Pin jack (x2) (shared with S VIDEO IN)

OUTPUT

Monitor output connector*5: Mini D-sub 15-pin (female), Audio output connector*6: Stereo mini jack (variable out)

Other signal input/output

RS-232C connector: D-sub 9-pin (female)



LAN connector: RJ45, 10BASE-T/100BASE-TX

Operating temperature (Operating humidity)

0°C to 40°C / 32°F to 104°F (35% to 85% (no condensation))

Storage temperature (Storage humidity)

-20°C to +60°C / -4°F to +140°F (10% to 90%)

Power requirements

AC 100 V to 240 V, 3.3 A to 1.3 A, 50 Hz /60 Hz

Power consumption

AC 100 V to 120 V

290W / 240W / 205W

AC 220 V to 240 V

275W /  225W / 190W

Standby mode power consumption

AC 100 V to 120 V

3W / 1.0 W (Standby mode: Standard / Low)

AC 220 V to 240 V

3 W / 1.0 W (Standby mode: Standard / Low)

Heat dissipation

AC 100 V to 120 V

990BTU

AC 220 V to 240 V

940BTU

Standard outside dimensions

W 313.4 x H 160.3 x D 349.3 mm / W 12 11/32  x H 6 5/16  x D 13 3/4 in W 313.4 x H 144.9 x D 349.3 mm / W 12 11/32  x H 5 23/32 x D 13 3/4 in (without protrusion)

Mass

3.7kg / 8lb 3oz

Supplied Accessories

RM-PJ7

Remote Commander (1)

CR2025

Lithium Battery (1)



Mini D-sub 15-pin cable (1)



Lens Cap (1)



Operating Instructions (1)



Quick Reference Manual (1)



AC power cord (1)

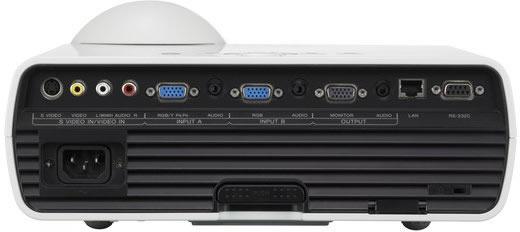

Rear Panel
VPL-SX125 Rear
