Mitsubishi EW330U DLP Multipurpose Widescreen Projector



EW330U








DISCONTINUED

FOR CURRENT MODELS CLICK HERE


XD550U Presentation



EW330U WXGA Portable Projector

If you're after a projector that provides brilliant widescreen images in a lightweight, easy to transport design, then the EW330U WXGA portable projector from Mitsubishi Electric is just what you're looking for.

The Mitsubishi Electric EW3300U data projector boasts a WXGA (1280 x 800 pixel) resolution, providing excellent compatibility with the growing trend towards wide-screen laptops and computer displays. It also allows users to display windows side-by-side, or screen DVDs in their native resolution. With a 3000 ANSI lumens brightness and a 2000:1 contrast ratio, the EW3300U is ideal for use as a classroom or conference room projector, delivering clear, bright images even with ambient light present.

KEY FEATURES

1.3x Zoom Lens

This powerful zoom lens ensures the projection of large-screen images even when space is limited, for greater flexibility in projector placement.

BrilliantColor™ technology, Six segment colour wheel

For better, more accurate colour reproduction, the EW330U data projector features BrilliantColor™ technology, as well as a six segment colour wheel and optimised colour coding algorithms.

Long Lamp life - Filter Free design

Thanks to it's optimised lamp temperature control, the EW3300U has a lamp life of up to 5000 hours (in low mode), meaning fewer lamp changes and lower cost of ownership. The filter free design also helps to increase the life of the lamp, as filter clogging can significantly lower lamp life.

Network Compatibility

The EW330U is equipped with an RJ45 terminal for remote projector management and control over a local area network. It is compatible with Crestron® RoomView software, allowing for the integrated control of up to 250 projectors.

3D Ready

Captivate your audience with high-impact 3D presentations using the EW330U. 3D video content must be filmed in field-sequential format and active shutter glasses are required.

Whisper Quiet performance

With an operating noise level of just 29dBA (in low mode), you can be assured of eye catching presentations free of distraction from the projector.



Projector Screen Bundle






Specifications
Model EW330U

Display technology

0.65" 1-Chip DMD, DDP2430/2431

Resolution

1280 x 800 (Total 1,024,000 pixels)

Brightness (Maximum)

3000 ANSI lumens

Contrast

2000:1

Colour Wheel 6 seg. Colour Wheel (R/G/B/W/Y/C)

Picture Size

40" ~ 300"

Zoom/Focus Manual Focus & Zoom Lens (Zoom Ratio 1.3:1)
Projection Lens f=16.9~21.9 mm, F=2.6 ~2.9,  (2.6-3.4m@100")
Off set axis 41.0:-1 , Hd = 0.03m up @100"

Source lamp

230W / 3,500 hours (Normal mode)*
170W / 5,000 hours (Low mode)*

Computer compatibility

Resolution ; 640 x480 (Expand)  - 1280 x 800 (Real) - 1600 x 1200 (Compressed),  Sync on green available

Video compatibility

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p(1125i/p 50Hz),

PC input terminals

RGB:mini D-sub 15 pin x 2; Digital: HDMI (ver1.2) x 1; Audio: Stereo mini jack x 1 (3.5mm)

Video input terminals

Composite RCA x 1, S-Video x 1

Output terminals

RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)

Communication terminals

RS-232C; D-sub 9pin x 1, LAN RJ-45 x 1 (Projector Control)

Scanning Rate  [H] 31 - 99 kHz, [V] 48 - 120Hz; [Dot clock] max.170 MHz
Audio Speaker 2W Mono x 1
Power consumption 330W (maximum) / less than 1W in power saving mode (3W if LAN connected)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz

Fan noise

29 dB(A) (Lamp low mode)

Dimensions (W x H x D)

282 x 94 x 229 mm (excluding all protrusions)

Weight

2.5 kg

Optional lamp

VLT-EX320LP

Included accessories

AC Power Cable, VGA Cable, Card Remote Control (with battery), User Manual CD, Quick Startup Guide & Safety Manual, Soft Carry Bag

Supplied Accessories
Remote

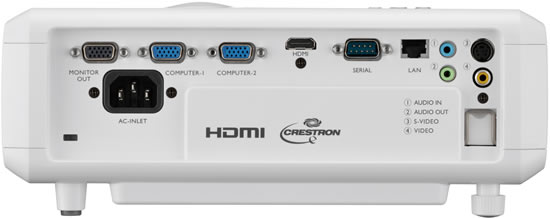

Rear Panel
XD550U Input



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty
2 Year Warranty
$119
$139

Logitech R400 Wireless Presentation Remote
Your Price:
$99.95

Special
Normally $129.95

FEATURES
Great for Microsoft Power Point Presentations, featuring:
• Inbuilt Laser Pointer
• 15 Metre Range
• Forward/Back Slide control

- Windows Only not Mac Compatible
[More Information]


Wireless Projection Adapter WPS-Dongle 2
Your Price:
$199



WPS-Dongle2

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

•Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10.5 and above
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149


Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
