Mitsubishi WD620U DLP High Brightness Multimedia PROJECTOR


DISCONTINUED

FOR CURRENT MODELS CLICK HERE




Combining the visual experience of full high-definition images with a lightweight, compact design, the WD620U portable projector makes it easy for educators and sales people alike to deliver high-impact presentations no matter where they are. With outstanding picture quality, as well as a range of performance enhancing features, the WD620U portable projector is the ideal full HD multimedia projector for use in businesses or schools.

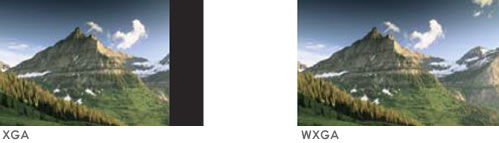

HD Resolution - With a display screen area larger than standard XGA projectors, the WD620U portable projector is capable of delivering data and video presentations with far greater detail.

Excellent Brightness and Contrast - With a high 4000 lumens brightness and 2000:1 contrast ratio, the WD620U portable projector is able to deliver clear, vibrant images even in well lit rooms.

Superb Colour Reproduction - A combination of BrilliantColor™ technology, Color Enhancer™ and a five-segment colour wheel means image colour is reproduced with the utmost accuracy.

Long Lamp Life up to 5,000 hours - The WD620U is capable of running for up to 5,000 hours (in low mode), greatly lowering the cost of ownership.

Quiet 29dB(A)* Operating Volume - For presentations free of distraction from the projector.

High Powered Zoom Lens - With its specially calibrated zoom lens, the WD620U is capable of projecting large images even when space is limited.

Network Connectivity - The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.

Visual PA2 system - Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. The software is also capable of recognising text, then converting it to a verbal announcement for increased impact.

How the Mitsubishi Electric Visual PA2 system works

Built-in 10W speaker with "Audio Mix" feature - A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The "Audio Mix" allows the user to adjust the volume of two separate audio inputs (e.g a wireless microphone and DVD player) independently, for greater audio control during presentations.

Low Standby Power use - In keeping with Mitsubishi Electric global green policies the FD620U portable projector uses less than 1W in standby mode (3W when connected to a network), for better energy efficiency that saves you money.

Wide range of video and data inputs, including HDMI - Connect multiple devices to the projector at the same time - perfect for fixed installation units.

Filter free design - No filter to clean means less projector downtime for maintenance.

Top Loading Lamp - For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.

Instant Shutdown - For quick pack up time when moving the projector between locations.

Projector Screen Bundle

Specifications
Model WD620U
Display technology 0.65" 1-chip DMD, 12 deg. LVDS, DDP2230
Resolution 1280 x 800 (total 1,024,000 pixels)
Colour Wheel 5seg. Color Wheel (R/G/B/W/Y)
Brightness (Maximum) 4000 ANSI lumens
Contrast 2000:1
Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.5:1) ,with Zoom Triger
Projection Lens f=20.6 ~30.1 mm, F=2.4-2.8,  (3.1-4.7m@100")
Off set axis 4.4:-1 , Hd=0.39m up @100"
Picture Size 40" ~ 300" (100"=3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Computer compatibility 640 x 480(Expand)  - 1280 x 800(Real) - 1280 x 1024 (Compressed), Sync on green available
Video compatibility NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i(1125i 50Hz), (1080i(1250, 50Hz) is not available)
PC input terminals RGB:mini D-sub 15 pin x 2, HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1; Audio: Stereo RCA x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C: 8pin x 1, LAN (RJ-45) x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270mm (excluding all protrusions)
Weight 3.6 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA (D-sub) Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case



Rear Panel

Remote



Optional Accessories

Wireless Projection Adapter WPS-Dongle 2
Your Price:
$199



WPS-Dongle2

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

•Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10.5 and above
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149


Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
