XGA (1024X768) resolution for vibrant images with precision color and detail.
A 3000 ANSI lumens projection lamp ensures great viewing even is location with ambient light. MP575 is ideal for small meeting room with under 40/50 people.
MP525 boasts high contrast ration with 2600:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read and in turn grab audiences’ attention and interest.
Filter-Free Design: Easy to Maintain, Easy on Your Budget BenQ DLP projectors use a filter-free design to eliminate the need for filter cleaning and filter replacement, which not only reduces labor for support staff, but also saves money for companies or schools.
No Color Decay: Reliable Picture Quality
BenQ projectors that use DLP technology are virtually immune to color decay – the yellow/green tint that some projector images develop over extended periods of usage. Because DLP projectors enjoy a technological advantage in protecting against color decay, they offer an extended lifespan – lasting year after year.
Combine this unmatched picture reliability along with a filter-free design and you can clearly see how DLP technology enables a lower total cost of ownership and a reliable, accurate picture that will stand the test of time.
Vivid Image for Work and Fun
Vivify Your World with BrilliantColor™
BenQ projectors, the first to adopt BrilliantColor Technology, with BrilliantColor deliver unsurpassed color range, depth, and vibrancy far beyond the conventional color space to capture hard-to-produce vivid yellows, cyan, and magenta. BrilliantColor and BenQ breathe life into every image!
Customize with 3D Color Management
Exclusive BenQ 3D Color Management empowers you with the freedom to fine-tune color intensity to meet your preference. 3D Color Management lets users independently adjust the hue, grain, and saturation levels of all six color wheel tones (red, green, blue, cyan, magenta, and yellow) without colors compromising each other.
Thoughtful designs
Wall Color Correction
Don’t worry if you don’t have a projector screen at home! BenQ has studied the most commonly used paint colors and developed easy-to-use Wall Color Correction Technology so that you can project anywhere and still get the precise color performance you need.
Built-in Speaker
With built-in 2W speaker with the MP515, not only do you get the vivid visual performance, you get the same audio satisfaction, too!
±40° Keystone
With up to ±40° keystone adjustment, a perfect square is all you’ll see. So go ahead and say goodbye to misshaped images, graphics, and charts!
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device. Perfect for viewing in noisy environments, language learning and other situations where a transcript of onscreen dialog is desirable.
Specifications
Native Resolution
XGA (1024 x 768)
Projection System
DLP® technology by Texas Instruments®
Brightness
3000 ANSI lumens
Lamp
210W, 3000/4000 hours (Normal/Economic mode)
Contrast Ratio
2600:1 (Full on/Full off)
Weight
4.8 lbs (2.2 kg)
Noise Level
33/28 dB (Normal/Economic mode)
Resolution Support
VGA(640 x 480) to UXGA(1600x1200)
Dimensions
10 x 3.5 x 8.4 inch (255 x 90 x 214 mm)
Image Size
24” to 300”
Throw Ratio
1.86 - 2.04 (53"@2M)
Zoom Ratio
Manual Zoom, 1.10:1
Lens
F=2.55 to 2.65, f=20.95 ~ 23.0 mm
Display Color
Full 16.7 million color palette
Aspect Ratio
4:3 Native, 16:9 Selectable
Horizontal Frequency
31-82 kHz
Vertical Scan Rate
48-85 Hz

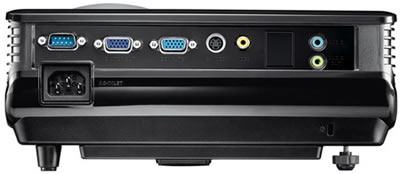

Input Terminals
PC:
Analog RGB: D-sub 15 pin x 1 A/V:
Component Video: D-sub 15 pin x 1
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1 Audio:
Stereo Mini Jack x 1
Output Terminals
PC:
Monitor Out: D-sub 15 pin x 1 Audio:
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 2W x 1
BrilliantColorTM
Closed Captioning
3D Color Management
Resolution Reminder
Digital Zoom (x2)
Freeze
HDTV compatible
High altitude mode
Quick Auto Search
Wall Color Correction
Blank
Panel Key Lock
Auto Off
Security Password
"Q?" Hot Key for FAQ
Auto Adjustment Hot Key
Accessories (Standard)
Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord
Control Terminals
Serial Connector : RS232 9 pin x 1
Keystone Adjustment
Manual Vertical ±40°
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Picture Modes
Dynamic Mode
sRGB Mode
Presentation Mode
Cinema Mode
User 1 Mode
User 2 Mode
