User-friendly operability and superior flexibility in installation and projection
Quick start & Direct Power Off
Your projector is setup and ready to display your presentation about 3 seconds after powering on, with the NEC Quick Start function.*
The Quick Power Off function stops the cooling fan immediately after turning off the power to the projector, which makes it possible to remove the projector quickly. For a rapid shut down, the projector can be turned off without powering off the projector using the Direct Power Off function and a power strip equipped with a switch and breaker.
*NP510/NP410/NP405/NP305. The other models are about 4 seconds.
The ECO function saves power and reduces CO2 emissions
15% energy saving and extends lamp life *
Lamp life in Eco Mode has been extended from 4000 hours to 5000 hours (Normal mode: 4000 hours).
Furthermore, power consumption has been reduced by about 15%. Power consumption in power-saving mode is 0.6 W (100-130V AC) / 0.7 W (200-240V AC). These enhancements help to dramatically reduce the TCO (total cost of ownership).

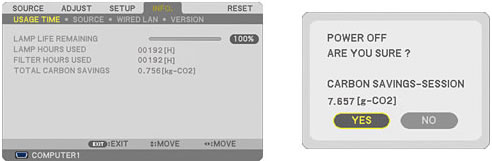

Carbon meter for visualizing ecology
The projector employs the Carbon Meter indicating the reduced amount of CO2 emissions in Eco Mode. Visually confirm the numerical value indicating the reduction in CO2 emissions in comparison with Normal Mode operation.
Variety of functions for user-friendly operation on different occasions
Security function
By using passwords, the projector cannot be used by unauthorized persons. It is impossible to project an image unless the proper password is entered.
Since the main unit has a security chain opening, unauthorized removal of the projector is prevented by inserting the security cable or wire commercially available into the opening.
Built-in 7W speaker for integrated audio solutions
The built-in 7W monaural speaker on the main unit outputs audio from computer, video, and S-video inputs.

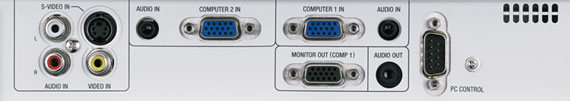

Multiple input/output terminals
Multiple input/output terminals include analogue RGB, DVI-I(digital), video, and S-video. By using the DVI-RGB adapter, analogue RGB signals can be connected from two computers.
NP610/NP510/NP410/NP310
NP405/NP305
Auto Vertical Keystone Correction
The projector will automatically detect and correct vertical inclination and trapezoidal distortions. The angle is adjustable vertically within a range of about +/-30 degrees from the projected angle.
Wall Colour Correction for vivid images even without a screen
Without a screen, projected images are affected because of the colour of the wall or blackboard you are projecting on to. The built-in colour correction for projecting images on a coloured wall or blackboard in this projector means that the colour tones of the projected image is approximate to those that are projected on to a white screen. The following nine colour options are available : whiteboard, blackboard, blackboard (grey), light yellow, light green, light blue, sky blue, light rose, and pink.
*Selecting [WHITEBOARD] reduces lamp brightness.
Wired LAN Connectivity (NP610/NP510/NP410/NP310)
Connect a LAN cable to the LAN port (RJ-45) on the main unit of the projector to control the projector from a remote PC via the network; for instance, use the PC to turn the power to the projector on and off or switch input signals.
High Contrast Rasio 2000:1 (NP410/NP310)
One-touch operation switches the remote controller into Eco mode
Virtual Remote Function is easy and convenient to set up on the projector

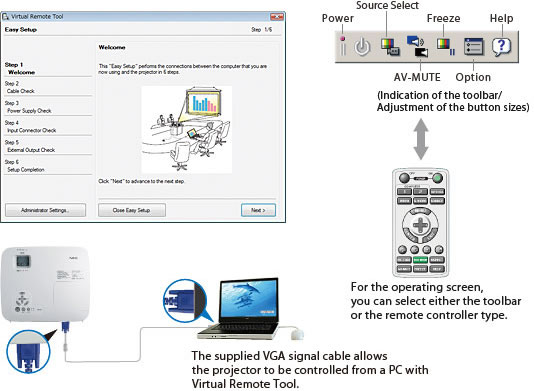

Virtual Remote Function
The included Virtual Remote Tool utility software allows to operate the power on/off or switch inputs on the projector from your PC by using the supplied VGA signal cable. The Easy Setup function is employed in addition to the ordinary Virtual Remote Tool. With this function, projector can be set up simply by following the instructions shown on the screen for easy setup.
Click with our website to download the Virtual Remote Tool utility and the PC Control Utility Pro .
(http://www.nec-display.com/dl/en/)
Specifications
Model Name
NP405
NP310
NP305
LCD Panel
3LCD, 3-chip optical engine / Dichroic mirror separation-prism convergence system
0.63 inch LCD
(Aspect Ratio 4:3)
Resolution *1
1024 × 768 pixels
Lens
Manual Zoom / Focus, Zoom ratio 1-1.2,
Throw ratio 1.5-1.8:1, F1.7-2.0, f=19.8-23.7mm
Lamp (Eco Mode / Normal Mode)
145W / 180W AC
Lamp Life *2 (Eco Mode / Normal Mode)
5000H / 4000H
Image Size (Projection Distance)
21 to 300 inches (0.7m to 11.3m)
Colour Reproduction
16.7Million Colours Simultaneously, Full Colour
Light Output *3 *4
Normal Mode
2600 ANSI lumens
2200 ANSI lumens
Eco Mode
Approx.80% of Normal Mode
Contrast Ratio (White / Black) *4
500 : 1
2000:1
500:1
Maximum Resolution
Analog
UXGA (1600 x 1200) with Advanced AccuBlend
Digital
SXGA+(1400 x 1050) with Advanced AccuBlend
(NP405/NP305 are not available)
Scan Rate
Horizontal
15kHz to 100kHz (RGB : 24kHz or over)
Vertical
50Hz to 120Hz
Keystone Correction
Vertical
Auto/Manual Approx.± Max 30 degrees
Input Terminals
2 Computer Input
1 D-Sub Mini 15pin
(Computer 1 IN),
2 D-Sub Mini 15pin : NP405/NP305
(Computer 1&2 IN)
Stereo L/R 0.5Vrms/22kΩ or over, Selected Audio Signal input from Computer1(Component), Computer2, S-Video or Video
LAN Port
RJ - 45
-
100BASE-TX/10BASE-T
-
Control Terminals
PC Control
1 D-sub 9pin
RS-232C
Built-In Speaker
7W Monaural
Quietness (Eco Mode / Normal Mode)
29dB / 35dB
Environment
Operational Temperatures
5°C to 40°C (Eco Mode selected automatically at 35°C to 40°C), 20% to 80% Humidity (Non-Condensing)
Storage Temperatures
-10°C to 50°C, 20% to 80% Humidity (Non-Condensing)
Power Requirement
100 to 240V AC, 50Hz/60Hz
(G version : 200 to 240V AC, 50Hz/60Hz)
Input Current
100 - 130V
3.2 / 1.4A
200 - 240V
1.5A
Power Consumption
Normal Mode
100 - 130V
251W
200 - 240V
239W
Eco Mode
100 - 130V
203W
200 - 240V
195W
Standby Mode
100 - 130V
8W
10W
8W
200 - 240V
8W
10W
8W
Power-saving Mode
100 - 130V
0.6W
200 - 240V
0.7W
Heat Dissipation
100 - 130V
857BTU (Max)
200 - 240V
816BTU (Max)
Dimensions (W x H x D) (Not Including Protrusions)
308mm x 93.5mm x 262mm
Weight
2.97kg
3.0kg
2.97kg
Accessories
Lens cap, Remote control, Batteries(AAA x 2), VGA signal cable(1.8m), Power cable, Soft Case(Except for NP405/NP305),
DVI to VGA adapter(Except for NP405/NP305), User's manual(CD-ROM), Quick setup guide
Regulations
UL/C-UL Approved (UL 60950-1, CSA 60950-1)
Meets DOC Canada Class B requirements
Meets FCC Class B requirements
Meets AS/NZS CISPR.22 Class B
Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)
Meets Low Voltage Directive (EN60950-1, Tテ弖 GS Approved)
