High brightness of 2700 lumens
Ideal for classrooms / conference rooms with a capacity of 20 ~ 40 people.
Superior 2000:1 contrast ratio
Presents true-to-life 3-dimensional images.
TrueVivid™ technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors giving the viewer the ultimate visual experience.
9 Bit color processing
The new 9 bit color processing technology increases the number of colors that can be displayed from 16 millions to over 1 billion.
De-interlacing
The advanced motion adaptive de-interlacing avoid "jaggy" artifacts and maintains overall image sharpness and detail.
Widescreen format provides more details for images and allows to represent two 4:3 ducuments simultaneously

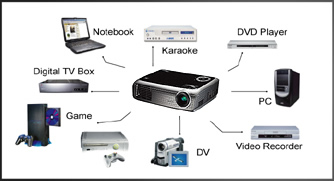

Wide variety of connectivity

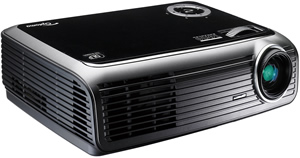

Stylish and compact design
Light weight & space saving design
Makes EW628 a portable device
Specifications
Display Tech.
0.65 inch'' WXGA DMD Chip from Texas Instuments
Resolution
Native WXGA (1280x800), Computer capability up to WXGA+ (1440x900) 60Hz
Brightness (typical)
2700 ANSI Lumens
Contrast Ratio
2000:1
Displayable Colors
134.2 million colors
Projection Lens
F # 2.41~2.55, f = 21.79~23.99mm
1.10x Manual zoom / focus lens
Projection Image Size
27.3~359.4 inches
Projection Distance
1.2~12m
Throw Ratio
1.55~1.70:1
Keystone Correction
Vertical ±16 degrees
Aspect Ratio
16:10 Native, 4:3 & 16:9 Compatible
Hor.Scan Rate
31.5~100 kHz
Vert.Scan Rate
47~85 Hz
PC Compatibility
VESA standards, Mac & PC Compatible supports up to WXGA+ resolution
Video Compatibility
HDTV(720p, 1080i), SDTV (480i/p, 576i/p),
Full NTSC, PAL, PAL-M/N, SECAM

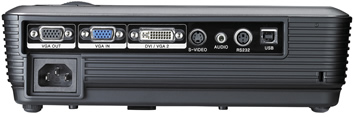

Input / Output Connections (Image)
DVI-I input (PC VGA/YPbPr/RGB/DVI-D with HDCP support HDMI) x1
VGA input(YPbPr/RGB/SCART) x1
S-Video input x1
RCA for composite video input(through adaptor) x1
VGA output for monitor loop through x1
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions
Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
Great for Microsoft Power Point Presentations, featuring:
• Inbuilt Laser Pointer
• 15 Metre Range
• Forward/Back Slide control
• And much more, just click on the more info link for the whole story.
- Capture Print outs, whiteboards and 3D objects
- 4x digital zoom
- Image freeze button
- Amazing clarity and colour with a native XGA (1024 x 768) resolution
- Connect easily via USB
- Upgrade any Projector To Wireless
- Fully compatible with both Windows and Mac® OS
- Supports resolutions up to 1024x768 and full-motion
video up to 1080p
- Presentation remote for total conference control
- Equipped with VGA pass-through for an extra display
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel
construction.
• Durable powder-coated finish
(Black).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come
standard with 4 x mounting
arms.
