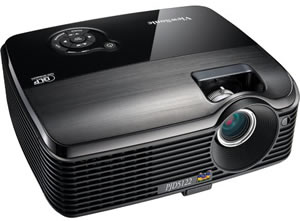

ViewSonic's PJD5122 is a great little projector that offers outstanding value and performance. This SVGA resolution projector supports high definition signals and projects 2700 lumens for clear, bright images in most lighting conditions. At only 5.1 pounds, it is light and compact, making it ideal for the mobile presenter. Texas Instruments’ BrilliantColor™ technology delivers brilliant, true-color and high contrast images for viewing presentations, charts, or video. With extensive connectivity, includ- ing two RGB inputs and one RGB output, the PJD5122 is an excellent multifunctional data/video projector. Eco-mode reduces fan noise for less distraction during important presentations and even extends the lamp life up to 6000 hours*. For increased secu- rity a PIN lock feature allows you to set a password to prevent unauthorized use. The PJD5122 is perfect for tabletop, ceiling mounting or taking on the road.
Bright in virtually any setting
Packs 2,700 ANSI lumens in just 5.1 lb, and with a high 3000:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment.
Eco-mode extends lamp life
Extend the life of your lamp up to 6000 hours* and reduce noise output.
BrilliantColor™ technology
Latest BrilliantColor™ Technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enriches the yellow color performance that is key to accurate and vivid color reproduction.
Set to Present
With 8 preset picture modes, including whiteboard, blackboard and cinema it is easy to put together a great presentation.
Off to Go feature
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects the lamp from sudden power blackouts.
3D Projection
The DLP-based PJD5122 offers 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link 3D solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen. (3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
* DLP Link Only - Not Compatible with nvidia 3D Vision.
Specifications
LCD
Type
0.55" Digital Micromirror Device (DLP™) Type
Resolution
800x600, 1600x1200 compressed
Lens
1.1× Manual optical zoom / Manual optical focus
Display
Size
30 - 300 (measured diagonally)
Throw Distance
1.1 - 11.3m
Lamp
220watt / 4000 hour rating (6000 on Economic mode)
Brightness
2700 Lumens
Contrast Ratio
3000:1
Keystone Correction
Vertical digital keystone correction: ± 40 degrees
Aspect Ratio
4:3 / 16:9
Audio
Speakers
5Wx1
Input Signal
Video
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps)
Sync
H/V Separated
Frequency
Fh: 31-100KHz; Fv: 48-120Hz
Compatibility
PC
XGA to UXGA
Mac
Up to 1600×1200 (may require Mac Adapter)
Connector
RGB Input
2×15-pin D-sub
RGB Output
1×15-pin D-sub
Composite Video
1 × RCA jack
S-Video
1 x 4-pin mini DIN
Audio
Input: 1 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack
