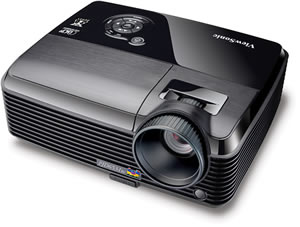

The ViewSonic PJD6531w is an enterprise-class projector designed for middle to larger venues. Offering 3300-lumen luminosity and brilliant 30-bit colour the PJD6531w can deliver vivid 16:10 wide images that are bright enough for even the most spacious meeting rooms.
Where other lesser projectors concentrate on gaining a higher brightness at the specific of, the PJD6531w concentrates on maintaining image integrity. Incorporating BrilliantColor™ technology, the projector depicts colours as they should be.
The benefit is clear and easily visible. More detail is seen, hard to display colours such as skin tones are correctly projected which all of which leads to an enriching and superior display experience. With 30% throw distance saving feature, the PJD6531w is practi- cal as well as built for performance. Weighting only 2.75kg, it is compact and fully mobile. Lamp life is extended, by using ViewSonic’s ECO-mode, to as long as 6000 hours, saving energy and lamp life.
The DLP™ Technology provides projector a small size but display greater than 720p, delivers a 2800:1 contrast ratio and capable of handing a 120Hz input making the PJD6531w 3D Ready and the perfect future proofed platform for media entertainment.
3D Projection
The DLP-based PJD6531W offers 120Hz fast refresh rate and are compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link 3D solution and nVidia 3D Vision. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen. (3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
Through the HDMI 1.3 and a full array of other input interfaces, provide all the connectivity needed. The PJD6531w also supports full remote scheduling, management through the integrated Ethernet connection; an operator will have full control over the projector even without leaving the desk. For presentations and new home media entertainment, the PJD6531w is a projector that offers the balance of premium image quality, portability and performance in a perfectly designed unit.
Bright in virtually any setting with 3300 lumens Packings 3300 ANSI lumens in just 2.75kg, and with a high 2800:1 contrast (typical), your presentations are guaranteed to be vibrant even in the brightest office environment.
Advanced connectivity
In addition to standard connectors, this projector provides two RGB inputs to easily switch between presenters. The HDMI 1.3 with HDCP input ensures signal integrity for superior HD video and picture reproduction.
Off to go
The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the mandatory cool down. This feature protects lamp life and extends the life of the unit.
BrilliantColor technology
Latest BrilliantColorTM DLP Technology delivers stunning all-digital clarity with life-like colour, sharp graphics and outstanding video performance. The implementation of a sophisticated 6-segment colour wheel enriches the colour, reproduction and depicts the image as it was meant to be seen.
Network control and management
Remotely schedule, manage and monitor the projector and its lamp status. Use the unique integrated management system to perform commands even when the direct host PC is powered off.
Easy, cost-effective maintenance
Extend the life of your lamp up to 6000 hours** and reduce noise output with ViewSonic ECO-mode.
Specifications
LCD
Type
0.65" Digital Micromirror Device (DLP™)
Resolution
1280x800, 1600x1200 compressed
Lens
Manual Zoom/Manual focus
Display
Size
40 - 300 inch (measured diagonally)
Throw Distance
1.3 - 10.0m
Lamp
230watt / 4000 hour rating
Brightness
3300 Lumens
Contrast Ratio
2800:1
Keystone Correction
Vertical digital keystone correction: +/-40 degrees
Aspect Ratio
16:10
Audio
Speakers
5Wx2
Input Signal
Video
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i, 1080p (24fps, 25pfs and 30fps)
Sync
H/V Separated
Frequency
Fh: 31-100KHz; Fv: 50-120Hz
Compatibility
PC
720x400 to 1600x1200
Mac
Up to 1152×864 (may require Mac Adapter)
Connector
RGB Input
2×15-pin D-sub
RGB Output
1×15-pin D-sub
Composite Video
1 x RCA-1
S-Video
1 x 4-pin mini DIN
Digital Input
1 x HDMI
Audio
Input: 2 x 3.5mm mini jack; Output: 1 x 3.5mm mini jack
Control
1 x RS-232 (9 pin D-sub) / RJ45 Network
USB
Type B
Power
Voltage
90~240VAC (Auto Switching), 50/60Hz (universal)
Consumption
290W (Typical) / <1W (Stand-by mode)
Controls
Basic
Power, Menu, 4 direction button , Enter/Blank, Source, Blank
OSD
Picture: Brightness, contrast, colour setting, keystone, aspect ratio, Image, white intensity, gamma, 3D sync, 3D sync invert Computer Image: Frequency, tracking, H Position, V Position Video Image: Saturation, sharpness, tint Setting: Manu position, projection, signal type, lamp hour, lamp hour reset, filter mode, filter hours, filter hours reset, power saving, auto source, ECO mode, high altitude, OSD timeout Advance: Blank screen, password word, screen capture, start up screen, text shot
