| Sanyo PLC-XD2200 LCD Data Projector |
|
|
FOR CURRENT SANYO PROJECTORS CLICK HERE |
|
Easy Auto Setup Makes it Easy to Use
PLC-XD2600 / XD2200 provides a “Auto Setup Function”
that does auto keystone correction by searching for an
input signal and detecting projector incline, reducing setup
time. Furthermore, the “Screen Guidance Function” allows
projector set up according to the displayed guidance. This
function provides an easy guide to using the
projector. The projector can be turned off by
unplugging the cable without pressing the power
button. You can pack up and leave quickly.
Bright Images Even In a Well-Lit Room
The PLC-XD2600 provides outstanding brightness of 2,600 lumens, while the
PLC-XD2200 delivers 2,200 lumens of brightness.

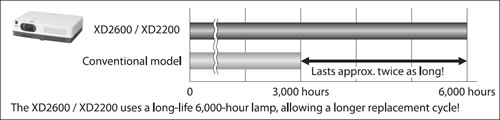

Ultra-Long Unfailing Lamp: 6000H (eco)
The PLC-XD2600/2200 allows saving your total cost of ownership with
equipping ultra long life lamp. This lump enable to be used 6000H with eco
mode in idea condition.

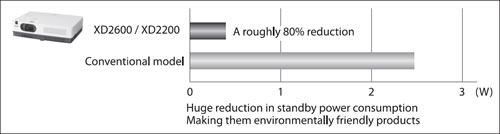

Environment friendly power consumption in standby mode
(Eco): 0.4 W
SANYO’s first ecological data projector with 0.4 W standby power
consumption. By redesigning electrical circuits, a standby power
consumption savings of about 80% was achieved compared to a
conventional model.
Wired LAN (RJ-45) for projector control
This model is equipped with Wired LAN (RJ-45) that allows you to manage
and control projector via Network. It is possible to check the operating time of
lamp and manage the warning notification by Email. Power ON/OFF and
switching of input signal can be controlled. You can save a lot of time without
manage and control.
Light Weight and Compactness for Greater Portability
The compact design (13.1 x 3.4 x 9.7 inch) and light weight body (5.7 lbs) let
you make presentations almost anywhere.
Other Features

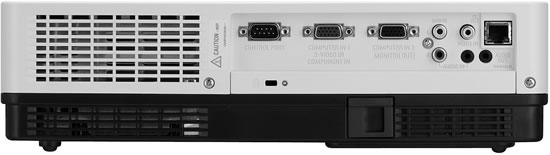

• D-sub 15pin for Input (VGA), D-sub 15pin for Input or Monitor out
• 18 languages (Operation menu)
• Color board (4 color) mode, Security: PIN code lock, Key lock
* For blackboard of green color only.
|
Specifications
| Panel |
0.55" tft p-Si x 3 |
| Resolution |
1024 x 768 |
| Lamp wattage |
215W UHP |
| Brightness |
2200 lumens (Lamp mode: High and Image mode: Dynamic)1 |
| Contrast ratio1 |
500:1 |
| Uniformity1 |
85% (corner to center) |
| Projection lens |
F = 2.0 - 2.15 / f = 0.72 - 0.87 inch |
| Zoom/Focus |
1:1.2 manual driven (10.8 - 12.8ft) |
| Screen size |
40" - 300" (4.3 - 38.7ft) |
| SD/HDTV compatibility |
480i, 480p, 575i, 575p, 720p, 1035i, 1080p |
| Colour systems |
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N |
| Video signal |
Composite, S-Video, Component |
| Terminals |
Dsub-15 x 1: analog RGB input (Component and S-video input with conversion cable), D-sub15 x 1: analog RGB input or monitor out2 |
| Video terminal |
RCA x 1: Composite video |
| Computer compatibility |
UXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC |
| Audio |
Mini-jack (stereo) x 1: Input (for Computer and Video), RCA x 2 (R,L), Mini-jack (stereo) x 1: Output (variable) |
| Communication terminal |
RJ-45 (LAN), Dsub-9pin (RS232C) |
| Presentation tool |
Freeze / Digital Zoom / No Show etc |
| Other features |
Progressive, 3-2 & 2-2 pull down, User logo |
| Scanning frequency |
H sync 15 - 100kHz, V sync 50 - 100Hz, Dot clock 140MHz |
| Sound output |
1.0W Mono |
| Fan noise |
29 dBA (eco lamp mode) |
| Voltage |
AC 100-120V, AC 200-240V, 50/60Hz |
| Power consumption |
100-120V: 186W (eco mode) / 230W (normal) / 261W (high), 200-240V: 181W (eco mode) / 218W (normal) / 247W (high) |
| Standby power |
100-120V: 0.4W (eco mode), 200-240V: 0.7W (eco mode) |
| Dimensions (W x H x D) |
333.5 x 85.2 x 247 mm |
| Weight |
2.6kg |
| Lamp life3 |
6000H (eco) |
| Included accessories |
Quick reference guide, Owner's manual (CD-Rom), CD-Rom read me note, CD-Rom (PJ-Net Manager application software), PIN code label, Lamp replacement label, UL cable cord, Power cord, Computer cable (Dsub 15-Dsub-15), Remote control, AAA battery x 2, Lens caps |
