Grandview Motorised Electric Projector Screen

Grandview motorised screen
Elite logo

  • Multi-Layered 1.0 Gain Material
  • Stylish White Casing
  • Floating Wall/Ceiling Bracket
  • Optional In-Ceiling box available
  • IR Remote Control Included
  • 10m 12v Trigger Cable Included
  • Black Bordered
  • Works with short & long throw projectors
  • Not compatible with Ultra Short Throw
delivery
3 year warranty
australian stock
insured delivery

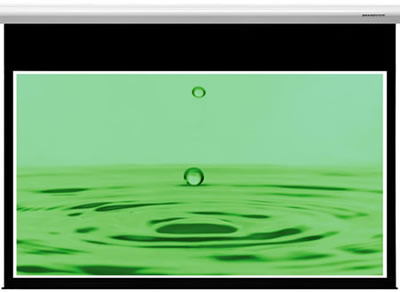

Grandview Screens Motorised Smart Screen

The Grandview Smart-Screen is designed to be clever to make your installation easy. The screen has features a floating bracket design allowing the included wall/ceiling brackets to be positioned anywhere along the back of the casing for easy mounting.

Grandview motorised screens now come with extra control options to raise and lower your screen - A 12 Volt Trigger is included with the screen as well as an IR remote control and the ability to integrate with a control system using RS232 commands.

The best products can only be made with the best materials and the highest grade of screen fabrics. Grandview utilises the most professionally made screen fabrics to reflect the truest, most vivid and dynamic images.

Grandview matte white fabric is composed of 4 different layers, including a sheet of weaved fiberglass, which helps stop static electricity and most importantly prevent wrinkles and waves. The screen fabric consists of a special material that helps prevent loss of light (brightness), making it compatible with almost any projector. Grandview's screen fabrics are designed to be fire, water, and mould resistant and can be cleaned if necessary. The projection surface on the matte white screen has microdots that are made with PVC technlology. This surface helps create the best possible reflection, while advances in screen technology helps keep the screen flat and retain its shape and reflectiveness over longer periods of time.

Fabric Features

  • Last-long Flatness
    With a four layer structure, including Fiberglass, stretch is less than 1% for long-lasting flatness
  • Sophisticated Images
    The screen material is engraved with optical microgrooves on the surface, with a resolution of more than 125 line pairs per mm. This ensures the sharpness of the projected images.
  • Colour Accuracy
    The reflected light is evenly distributed with less than 60K colour temperature difference between projection angle and reflection angle for accurate colour at any viewing angle.
  • Wide Colour Range
    The Grandview motorised range provides more vivid images with higher contrast whilst maintaining colour accuracy exactly as the film maker intended.

Weaved Fiberglass of the matte white fabric

The weaved Fiberglass layer of the fabric is used as a backing or backbone of the entire screen structure. With this layer Grandview screens have a stretching rate of less than 1% and a much longer life span than ordinary meterials. The fiberglass backing prevents wringling or waves due to changes in temperature, humidity or drag foces.

Grandiew motorised screen material layers
Grandview motorised screen material layers

Universal Floating Brackets

Grandiew motorised screen mounting brackets

Features:

  • As standard is supplied with IR Remote, 12V Trigger, Close Contact and a manual override switch.
  • Simple mechanical limit setting adjustments via the motor.
  • Install is simplified with multi fit brackets that can be installed anywhere along the length of the casing allowing for mounting to wall stud positions.
  • Brackets suit wall, ceiling or suspended installation.
  • Projection surface is Plana R.
  • Casing is extruded aluminium, finished in white.
  • IP Lan Control
  • 1.5mm 12V Trigger port.
  • External IR Cable with Jack plug 3.5mm with receiver eye.
  • Close Contact Cable Provided in the box.
  • RS232 control is available – requires control equipment.
  • Manual Switch located on the bottom of the casing (Push button), close to the Power cable outlet.

Sizes

Available in both aspect ratio's, 4:3 or 16:10 (for video's and presentations), and 16:9 (widescreen for Digital television and DVD movies).

Package & Save

Buying a new projector and screen? Ask for a package discount!

What we say

The Grandview motorised screens are perfect for home movies where you would like the screen out of the way or just want something a little different than the basic fixed frame screen. The screen comes down at the press of a button on your included IR remote control. In comparison to many cheaper screen brands the Grandview's use a higher quality material to minimise stretch overtime and a quieter motor.

Grandview colours
Expand Model Size Price
Image Area:
1710x1280mm
Case Length:
1960mm
Warranty:
3 Years
Image Area:
1880x1060mm
Case Length:
2130mm
Warranty:
3 Years
Image Area:
2030x1140mm
Case Length:
2280mm
Warranty:
3 Years
Image Area:
2260x1270mm
Case Length:
2520mm
Warranty:
3 Years
Image Area:
2480x1395mm
Case Length:
2730mm
Warranty:
3 Years
Image Area:
2655x1495mm
Case Length:
2955mm
Warranty:
3 Years
Image Area:
2880x1620mm
Case Length:
3175mm
Warranty:
3 Years
Image Area:
3100x1745mm
Case Length:
3400mm
Warranty:
3 Years
Image Area:
3320x1870mm
Case Length:
3620mm
Warranty:
3 Years
Image Area:
3545x2000mm
Case Length:
3845mm
Warranty:
3 Years
Image Area:
3985x2240mm
Case Length:
4285mm
Warranty:
3 Years
Image Area:
4430x2490mm
Case Length:
4785mm
Warranty:
3 Years
Image Area:
2025x1265mm
Case Length:
2275mm
Warranty:
3 Years
Image Area:
2210x1380mm
Case Length:
2470mm
Warranty:
3 Years
Image Area:
2370x1480mm
Case Length:
2620mm
Warranty:
3 Years
Image Area:
2585x1615mm
Case Length:
2965mm
Warranty:
3 Years
Image Area:
2800x1750mm
Case Length:
3100mm
Warranty:
3 Years
Image Area:
3015x1885mm
Case Length:
3395mm
Warranty:
3 Years
Image Area:
3230x2020mm
Case Length:
3530mm
Warranty:
3 Years
Image Area:
3446x2155mm
Case Length:
3745mm
Warranty:
3 Years
Image Area:
3877x2423mm
Case Length:
4177mm
Warranty:
3 Years
Image Area:
4308x2692mm
Case Length:
4668mm
Warranty:
3 Years
*Sizes may vary slightly between batches.
Replacement, Optional, & Spare Parts

Note: Brackets and a remote are already included with new GV screen purchases.

Expand Model Description Price
Compatible With:
GRIP084V, GRIP100V, GRIP120V,
GRIP085H, GRIP092H, GRIP102H, GRIP112H,
GRIP094C, GRIP103C, GRIP110C
Compatible With:
GRIP150V, GRIP180V, GRIP200V,
GRIP120H, GRIP130H, GRIP140H, GRIP150H,
GRIP160H, GRIP180H, GRIP200H
GRIP120C, GRIP130C, GRIP140C, GRIP150C,
GRIP160C, GRIP180C, GRIP200C
Compatible With:
All current Grandview IR motorised screens
Compatible With:
All current Grandview IR motorised screens

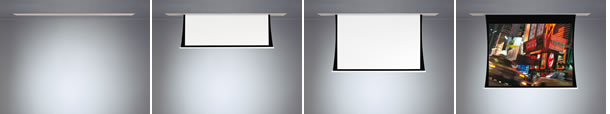

Optional In-ceiling Hideaway Box

An in-ceiling box to hold your Grandview motorised screen inside the ceiling cavity. (please check cavity space prior to ordering)
grandview hideaway
Expand Model Compatible With Price
Box Length:
2560mm
Box Width:
222mm
Box Height:
160mm
Box Length:
2975mm
Box Width:
222mm
Box Height:
160mm
Box Length:
3360mm
Box Width:
300mm
Box Height:
250mm
Box Length:
3750mm
Box Width:
300mm
Box Height:
250mm
Box Length:
5000mm
Box Width:
300mm
Box Height:
250mm
Hideaway More Information Click Here

Grandview also has an all-in-one recessed motorised screen. Please click here to view the range.

Screen Specifications

+ or - 1%
Grandview motorised specifications

Grandview large motorised specifications
