BenQ LX810STD DLP Short Throw Laser Projector

LX810STD






DISCONTINUED

For the current BenQ Range Click here

Quick Facts:
BenQ LX810STD Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 1.0m to 1.0m
100" (4:3) 2030x1523mm From 1.2m to 1.2m
120" (4:3) 2360x1770mm From 1.4m to 1.4m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 3000 ANSI Lumens
Maximum Contrast: 100,000:1
Weight: 5.6kg
Fan Noise: 39 / 36db (eco)
Warranty: 2 Years (+1 Year $135)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 25,000hrs
FEATURES
- Short Throw
- Vertical Keystone Correction
- 2x HDMI Connection
-
Powerful 20W Speaker

A Smarter Alternative to Convention

The LX810STD features the BlueCore Light Engine technology to bring you optimized visual display and energy efficiency. Utilizing SmartEco™ Technology, you're able to reduce light source power consumption by up to 70%. It's an economic and environmentally friendly choice for your school.

key features

  • Perfect Performance up to 20,000 Hours with BlueCore Laser Light Source
  • 3000 ANSI Lumen High Brightness
  • 100,000 High Contrast Ratio
  • Breakthrough Dust-Proof Engine
  • TR0.61 Short Throw
  • Centralized Maintenance via LAN Control

BenQ BlueCore Light Engine: a Smarter Alternative to Traditional Lamp

The BenQ LX810STD is equipped BlueCore, a light engine that utilizes the unparalleled qualities of a laser light source to achieve optimized energy efficiency, projection performance and readiness. It also incorporates the BlueCore-enhanced SmartEcoTM technology to further reduce light source power consumption by up to 70% for a significantly lowered total cost of projector maintenance and ownership. Free of mercury, the BenQ LX810STD is a safer, smarter and environmentally friendly choice for your school.

Superior Projection Performance

BlueCore Laser for Pure Color

To harness the high output of the powerful laser light source, BenQ engineers utilized dual color wheels for BlueCore Laser Projectors to significantly improve pure RGBY colors achieved by eliminating the white segment of a conventional color wheel. Through an ideal mixture of the red, green, blue and yellow color segments, BenQ Laser Projectors produce brilliant color and a wider color gamut than conventional lamp-based projectors. Balanced RGBY optimization makes high color projection more efficient while also resulting in pure white and brightness which is ideal for presentations.

LX810STD Laser Projector

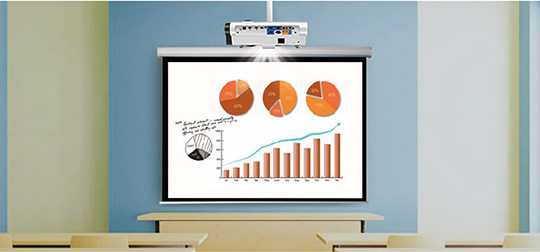

High Brightness

With a high brightness of 3,000 ANSI lumens, LX810STD can deliver clearer and sharper images and text even in large-sized classrooms with some ambient light.

LX810ST High Brightness

Zero Disruptions with Short Throw Projection

Say goodbye to the shadows that often interrupt your presentation. With a projection distance this close, you and your audience can move freely without worrying about obstructions between the projector and the screen! And the short-throw projection distance keeps the projector light from shining directly into your eyes, allowing you to keep your focus on your audience.

LX810STD Short Throw

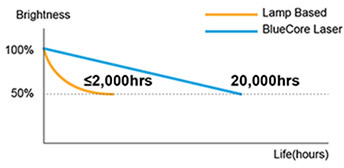

Optimizing Educational Investment with Low TCO

20,000 Hours of Optimal Brightness and Reliable Performances

The BlueCore light engine, powered by a laser light source, provides users with up to 20,000 hours of light source life. The LX810STD offers a much more reliable performance with no sudden decrease in brightness.

LX810ST Total cost of Ownership

Advanced Dust-Proof Engine

Severe dusty environments can damage sensitive electronics. To minimize service costs and prevent downtime, LX810STD features sealed optical engine designed to protect key components of the light path.

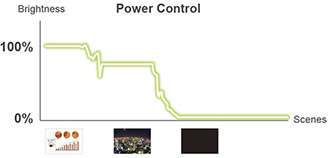

Power Smart with BlueCore and SmartEco Technology

Driven by BenQ’s latest BlueCore Light Engine, the all new SmartEco technology optimizes the core element of the projector – the projector light source system – to save up to 70% in light source power consumption! For schools that are looking for ways to lower the total cost of ownership, SmartEco certainly helps to reduce energy costs and extend the light source life.

LX810ST Power Control

SmartEco Mode

The SmartEco Mode automatically determines the optimal brightness depending on the input source. This special mode cleverly adjusts the light source power to maximize power saving – delivering the best contrast and brightness performance at the same time.

LX810ST Smart Eco

No Source Detected Mode

SmartEco activates the Eco Blank Mode after the projector has remained unconnected to a display source, such as a classroom PC or notebook, for three minutes, automatically lowering the projector brightness to 30%. This is to avoid keeping a projector from running with full lighting power, allowing the projector light source to rest whenever possible. Hence, the projector light source lasts longer.

LX810STD No source Detected



EcoBlank Mode

The Eco Blank Mode allows teachers to blank the projection screen when the projector is not in use. Blanking the projection screen also allows teachers to direct their students’ focus back on them. Press the “Eco Blank Mode” button on the keypad or the “Blank” button on the remote control to activate this feature and watch the projector dims the light source power automatically, lowering the total light source power consumption by up to 70%.

LX810STD Eco Blank

Auto Power Off

If the projector is found to be without a display source after 30 minutes, the system will automatically turn off the projector, eliminating unnecessary energy waste and prolonging the life of the projector.

Ease of Use

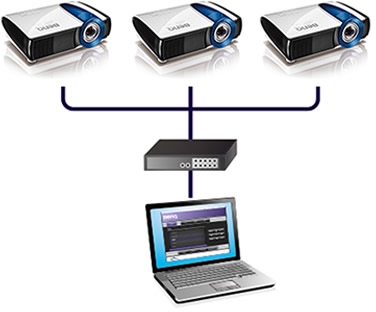

LAN Control

Designed to help IT managers perform day-to-day projector maintenance efficiently , LAN Control provides full access and control over networked projectors directly from IT workstations. The interface offers seamless support for Crestron, RoomView and PJ-Link LAN control systems.

LX810STD Lan Control

LX810STD Speakers

20W Speaker Power and Microphone Input Support

The LX810STD comes with enhanced audio support for your classroom. Two 10W speakers are sealed and secured within each side of the projector with BenQ's anti-shake design to deliver 20W crisp-clear audio performance with stable projection. The microphone input connects the projector to a conventional microphone or microphone headset for increased ease of teaching and learning.

Instant On & Off

BenQ BlueCore education projectors could be turned on & off so instantly than other lamp-based projectors to significantly reduce setup time.

1.5A USB Type-A Power Supply

Users can charge their mobile devices through 1.5A USB Type-A power supply through USB Type-A. You don't need to worry about your mobile device running out of battery while streaming your presentation content during meetings.

LX810STD USB


BenQ DLP ® Projectors Perfectly Long Lasting Picture Quality with DLP Projection Technology

Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar ® statuette), is the leading projection technology used in 90% of world’s digital cinemas and 100% of IMAX theaters. With DLP dominating the projector market with over 50% share, BenQ is today the #1 bestselling DLP projector brand, delivering unmatched world-class performance.

Long Lasting

The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed DLP engine design mean that BenQ DLP Projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change.

MX532 lasting colour

Razor-Sharp

Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco™ Technology.

MX532 sharp picture

Projector Screen Bundle




Specifications

Projection System‎ DLP Single 0.55" XGA ‎
Native Resolution‎ 1024x768 pixels ‎
Brightness (ANSI Lumens)‎ 3,000 ANSI lumens ‎
Contrast Ratio‎ 100,000:1 ‎
Display Color‎ 1.07 Billion Colors ‎
Lens‎ F=2.6, f=6.9mm‎
Aspect Ratio‎ Native 4:3 (5 aspect ratio selectable) ‎
Throw Ratio‎ 0.61‎
Projection Size‎ 60'' ~ 120''‎
Zoom Ratio‎ Fixed ‎
Lens Shift‎ NA‎
Keystone Adjustment‎ Vertical: ± 40˚‎
Projection Offset**‎ 115% ‎‎
Resolution Support‎ VGA (640x480) to WUXGA (1920x1200) ‎ ‎
Horizontal Frequency‎ 15KHz ~102KHz ‎‎
Vertical Scan Rate‎ 23Hz ~120Hz‎‎
HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p ‎‎
Video Compatibility‎ NTSC, PAL, SECAM ‎‎
Weight‎ 5.6kg‎
Interface‎ HDMI x 2 (HDMI-2 share with MHL)
PC In (D-sub 15pin) x 2 (share with component video)
Monitor Out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video In x 1
Audio In (mini jack) x 2
Audio L/R in (RCA) x 1
Audio Out (mini jack) x 1
RS232 (DB-9pin) x 1
LAN RJ45 x 1 (LAN control)
USB (type A) x 1 (5V 1.5A power supply)
USB (type mini B) x 1‎
Power Consumption‎ 305W (max.)‎
Power Supply‎ AC100V to 240V, 50Hz to 60Hz‎‎
DMD type‎ DC3 DMD Chip‎
Light Source‎ Laser Light Source‎
Light Source Life‎ 20,000/25,000 hours (Normal/Eco mode)‎
Noise Level‎ 39dB/36dB (Normal/Eco mode with dust filter)‎
Build in Speaker‎ 20W (10Wx2)‎
Operating Temperature‎ 0。C-40。C‎
Standby Power Consumption‎ Standby<0.5W‎‎
On-Screen Display Languages‎ Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 languages) ‎
Accessories (Standard)‎ Remote Control w/ Battery RCS011 x 1
Power Cord (by region) x 1
User Manual CD x 1
Quick Start Guide x 1
Warranty Card (by region) x 1
VGA (D-sub 15pin) Cable x 1
Dust filter (assembled) x 1‎
Supplied Accessories
Remote
Benq Projector Remote
Rear Panel
LX810STD Rear
