Optoma UHL55 DLP 4K Ultra HD Smart Home Theatre LED Projector

UHL55


3 Year Warranty
Powered By LED
Home Theatre


4K Ultra HD


DISCONTINUED



FOR CURRENT OPTOMA PROJECTORS CLICK HERE


Quick Facts:
Optoma UHL55 Throw Distance Chart (Examples for common Sizes) T/R: 1.2:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.4m to 2.4m
100" (16:9) 2130x1200mm From 2.5m to 2.5m
110" (16:9) 2435x1370mm From 2.9m to 2.9m
120" (16:9) 2580x1450mm From 3.1m to 3.1m
SPECIFICATIONS
Native Resolution: UHD 3840 x 2160 16:9
Brightness: 2000 ANSI Lumens
Maximum Contrast: 250,000:1
Weight: 3.9kg
Fan Noise: 28db (eco)
Warranty: 3 Years (+1 Year $135)
LED Warranty: 12months/1000hrs
LED Life Up To: 30,000hrs
FEATURES
- HDR10 Compatible
- HDMI Connection
- HDMI 2.0 Connection
- 2x 8W Speaker
- SPDIF Out
- Inbuilt Wifi
- Inbuilt Bluetooth Input / Output
- Short Throw
- Inbuilt Android™ 4.4 (Kitkat)
- USB Image & Video reader

Optoma UHL55 4k LED Projector

The Optoma UHL55 is a true all in one projector saving you from costly installation or maintenance with a massive swath of inbuilt features. The UHL55 offers a massively detailed 4K UHD resolution ready for the most detailed movies and gaming combined with a long-lasting LED light source which can last up to a massive 30,000 hours of use. If you watch two two-hour movies every day without fail that equates to 41 years of operation perfect for binging Netflix or nonstop movie marathons.
With a 1.2:1 throw ratio the UHL55 is perfect for popping on a coffee table eliminating the need to run cables and install ceiling mounts. For a massive 100” picture the UHL55 can be placed at 2.5metres distance.

Features

  • Incredible 4K UHD resolution with 1,500 lumens and four HDR10 picture modes
  • Android OS with 4K UHD HDR media player, smart TV apps and Optoma Marketplace app store
  • Works with Amazon Alexa and Google Assistant
  • RGBB LED light source with up to 30,000 hour life
  • Stereo audio with Dolby Digital decoding and Bluetooth audio input and output
  • Protective sliding lens cover and power switch
  • Auto focus and auto keystone for easy place and play

A world of entertainment
Access all your favorite media services and stream movies, TV shows and clips. With built in Android™ 4.4 (Kitkat) you can download popular apps such as Netflix and YouTube. (Google Play Services not supported)

An optional USB Mouse may be required for some functions.

UHL55 Netflix Projector

4K Lizzard Smallzoom

4K UHD Resolution

The UHL55 is a new breed of projector with an Ultra HD 4K resolution giving you four times the detail of a full HD projector. This delivers a sharper clearer picture perfect for the new generation of gaming consoles and 4K disks.

HDR Logo

HDR10 compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors like the UHL55 allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

SDR to HDR Conversion

Dynamic Black technology

This feature gives more depth to your image by smoothly adjusting the lamp output, based on the brightness information of each frame; to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

High Contrast

LED light source
An LED light source, which replaces a traditional lamp and color wheel, while also having a
super long life up to 30,000 hours.
It’s 7 times longer than traditional lamp life ratings, saving you both time and money.

UHL55 LED Lamp Life



Color Accuracy
The UHL55 achieves near REC.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic colour exactly as the director intended.

UHL55

Superior audio performance
• UHL55 is capable of decoding Dolby 5.1 surround sound or the audio can be passed through S/PDIF port and connect to your own surround system.
• Two listening modes : music & movie

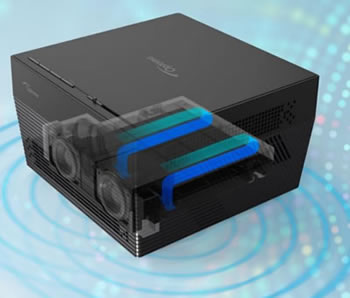

Audio performance worthy as a centerpiece
The UHL55’s vented enclosure technology extends low -pitch and low-frequency soundwaves to be reproduced at sub-100 Hz. This results in a deeper, fuller and superior bass performance. Precision engineered ports allow the UHL55 to deliver 360 degree, omnidirectional sound, suitable for any home environment.

UHL55 can be used as Bluetooth speaker when not used as a projector.

UHL55 Audio

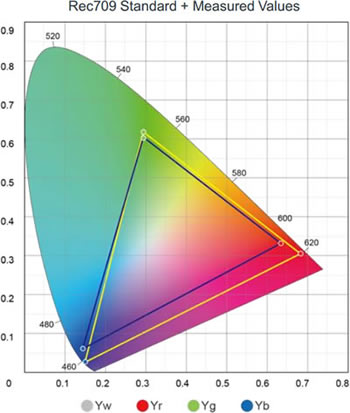

UHL55 Color Gamut

ULH55 REC.709 Colour



UHL55 Colour



UHL55 has a very wide color gamut, 118% of Rec. 709 color gamut. Thanks to the wide color gamut, the individual R, G and B colors are bright and vibrant.

PureMotion
PureMotion is a sophisticated frame interpolation processing technology that compensates for videos filmed in 24fps to remove motion blur. The processing generates transitional frames in between existing ones to reduce motion judder giving you a smooth viewing experience during action packed fast-moving scenes.



UHL55 Pure Motion

Auto Focus
When turning on the power, the focus sensor measures the distance between the projector and the screen and adjusts the focus of the projected images automatically.



UHL55 Auto Focus



USB reader (Multimedia)

The UHL55 also offers a versatile USB reader capable to playing movies, photo's, music or even business presentations from a USB stick without the need for an expensive player or computer.

Type Compatible File Types
Image Files BMP, JPG, PNG
Audio Files ADPCM-WAV, PCM-WAV, AAC
Video Files AVI, MOV, MP4, MPG, MKV
Office Files WORD, EXCEL, POWERPOINT, PDF

UHL55 USB Reader




Specifications

UHL55 Specification

Aspect Ratio 16:9 (native), 16:10 and 4:3 compatible
Audio 2 x 8W (stereo), Dolby Digital decoding, Bluetooth audio input & output
Brightness 2,000 ANSI lumens (Bright), 1,500 ANSI lumens (Economic)
Color Wheel RGBB LED
Connections 2 x HDMI (2.0 with HDCP 2.2), 1 x USB 2.0 (HID, 1.0A), 1 x USB 3.0 (HID, 1.5A), RJ-45, audio out (3.5mm), optical out, Bluetooth 4.0 (HID and audio input/output),
Contrast Ratio 250,000:1
Display Technology Single 0.47” 4K UHD DMD DLP® by Texas Instruments™
Image Size 30” – 200” Optimal image quality range: 50” – 120” (80” ideal)
Light Source Life 30,000/20,000 hours (ECO/Bright)
Maximum Resolution 4K (4096 x 2160) @ 30Hz
Native Resolution 4K UHD (3840 x 2160) @ 60Hz with XPR Technology
Noise Level 28 dB
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 170W (Bright mode)
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Projection Distance 2.6’ – 17.4’
Projection Method Front, rear, ceiling mount, table top
Remote Control Backlit Bluetooth remote
Throw Ratio 1.2
Uniformity 80%
Wireless Technology 802.11ac (WEP/ TKIP, AES, WPA, WPA2)
Zoom Type Digital
COMPATIBILITY SPECIFICATIONS
3D Compatibilty Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer Compatibilty 4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
Video Compatiblity 4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
PHYSICAL SPECIFICATIONS
Dimensions 218 x 135 x 218mm
Security Kensington® lock port, password (OSD)
Weight 3.9kg
Other
Accessories Mount: OCM818B-RU, Backpack case: BK-4034, Carrying handle: BK-4035, Remote: BR-3071N, Power supply: BP-1003
Optional Accessories Mount, backpack carrying case, leather carrying handle and power supply
Standard Accessories Power adapter with cable, HDMI cable, Bluetooth remote, quick start guide and warranty card





Supplied Accessories
Remote
UHL55 Remote
Rear Panel

UHL55 Connections



Optional Accessories

HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
