Sony VPLPHZ10 High Brightness Full HD Laser Projector




VPLPHZ10







Sony Logo


DISCONTINUED

Replaced by the VPLPHZ11 Click here

Quick Facts:
Sony VPLFPHZ10 Throw Distance Chart (Examples for common Sizes)
T/R: 1.28-1.88:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.3m to 3.3m
98" (16:10) 2110x1320mm From 2.7m to 4.0m
118" (16:10) 2540x1590mm From 3.3m to 4.8m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 500,000:1
Weight: 8.7kg
Fan Noise: 35 / 28db (eco)
Warranty: 3 Years
Lamp Warranty: 1500 hours
Laser Life Up To: 20,000hrs

FEATURES
- HDMI Input
- Vertical & Horizontal Keystone
- Vertical & Horizontal Lens Shift
- 1.45x Zoom
- 360 degree tilt Horizontal & Vert.
- Powerful 16W Speaker

- HDBaseT Compatible


Sony VPLPHZ10 Reviews:

MH530 Review
Performance
Features
Ease Of Use
Value

"The PHZ10's image quality is in the top tier for business and education projectors for everything from maintaining crisp text in spreadsheets and fine detail in line drawings to delivering vibrant colors in graphics and highly watchable video and film. It's not in the same league for movies as a similarly priced home theater projector, and it doesn't offer 3D support. However, its image quality beats low-end home theater projectors, with the bonus of much higher brightness for standing up to ambient light.

Colors for graphics are vibrant and nicely saturated in all color modes, and colors for film and video are close enough to accurate even in the brightest mode to use it without a second thought for presentations that include photos and short video or film clips. "


MH530 Review

"It was inevitable. Until recently any reasonably bright laser projector with 1080p or WUXGA resolution has been at least $5000, and that makes this Sony with a projected street price of $3000 – a real game changer.

What the laser brings to the party – in summary:

Long life – no maintenance
Projector dims slowly over time
Color holds far longer than lamp based projectors
A larger color gamut, which produces output that appears brighter than an equally bright (by measurement) lamp based projector
Constant brightness and Auto calibration – for applications requiring consistent brightness, and color that won’t shift noticeably, as is needed in some commercial installations"

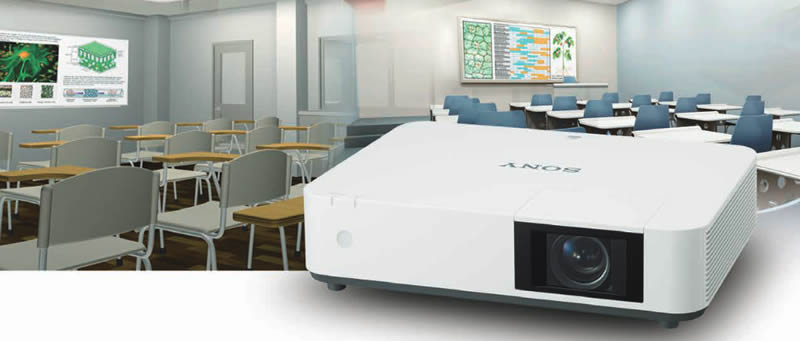

VPLPHZ10 enviro

Cost effective laser projection with excellent picture quality, easy installation and low running costs

The VPL-PHZ10 laser projector is a versatile, affordable choice for installation in a wide range of education, business and entertainment environments.

The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours. This laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. An automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, significantly driving down total lifetime ownership costs. Constant Bright maintains consistent light output levels throughout the laser's 20,000 hours (at light output mode "Middle") recommended lifespan.

Offering a stylish blend-in design and low fan noise, the VPL-PHZ10 fits smoothly into almost any environment – from academic institutions to corporate environments. Mount the projector at any angle, even on its side or upside down. Set-up's easier than ever with a friendly new installation menu.

*Actual hours may vary depending on usage environment.

High Image Quality

Very High Image Quality with 3LCD Projection System and Z-Phosphor Laser Light Source
Combining a Z-Phosphor laser light source with a 3LCD optical system, the ground-breaking VPL-PHZ10 and VPL-PWZ10 projectors generate a powerful 5,000 lumens respectively of color light output at WUXGA resolution (VPL-PWZ10 at WXGA resolution). Each projector’s light engine uses blue laser as its light source, which excites a phosphorous material that in turn creates white light. The white light is delivered to the 3LCD optical system, which generates constant, vibrant RGB color through a color-splitting process. This produces brightness sufficient for a broad range of commercial, academic, and entertainment applications.

VPLPHZ10 Laser Projector

Crisp, Detail-packed WUXGA Resolution Images
These projectors deliver an amazing WUXGA resolution (1920 x 1200), which exceeds Full-HD resolution (1920 x 1080). It also allows projection in a wider display range. More information can be displayed on screen, so you can see the whole page without scrolling. Extremely clear and detailed high-quality images are projected, even on a large screen, and native Full-HD images can be projected full screen. These ground-breaking projectors are the ultimate tool for projecting images in a range of applications requiring exceptional detail.

VPLPHZ10 Resolution

Advanced Picture Refinement Technologies

• See Extreme Clarity in Every Pixel
Sony’s Reality Creation function has now been adapted for the VPL-PHZ10 and VPL-PWZ10. It reproduces the texture and color of the original WUXGA (VPL-PWZ10 at WXGA) signal by restoring missing information lost during packaging of the original contents to disk and broadcast transmission.

VPLPHZ10 Pixel creation

• Dynamic Image with High Contrast
The Contrast Enhancer function automatically adjusts the contrast for optimum viewing. It compensates for dark and bright parts of an image by analyzing the signal component of each scene in real time to enhance contrast.

VPLPHZ10 Contrast

Energy Efficient & Low Total Cost of Ownership

Up to 20,000 Hours* of Virtually Zero Maintenance Operation
Thanks to its Z-Phosphor laser light source with control technology, long-life LCD panel, and advanced filter system, the laser projectors (VPL-PHZ10/PWZ10) offer up to 20,000 hours* of operation without maintenance or replacement. Virtually zero maintenance requirements and a range of energy-saving features reduce total lifetime ownership costs compared with conventional projectors.
* Actual hours may vary depending on usage environment.

Hassle-free Automatic Filter Cleaning
Now you can focus on great-looking images instead of arduous maintenance tasks. A new automated filter cleaning system removes dust every 100 hours*.

VPLPHZ10 Filter

Energy-efficient Functions

• Auto Dimming Mode
The laser projectors are equipped with a light source dimming function. After 10 seconds of a static signal feed, the light source dims by approximately 15% which is barely noticeable. If the VPL-PHZ10/PWZ10 are left powered on while not in use, after a set period of time the unit will automatically detect no change of signal input and will dim the light source to as low as approximately 5% of original brightness to significantly reduce energy consumption.

VPLPHZ10 Dimming Mode
• Blank (Picture Muting)
The projectors can temporarily disable video signal output. This function can be easily operated with just the touch of a button on the supplied Remote Commander unit. In addition, this function allows blank image projection with low power consumption using light source control technology.
VPLPHZ10 Blank

• Auto Light Source Control for Energy Saving
The brightness of the light source’s output is automatically adjusted depending on the brightness of the projected image, to avoid unnecessary power consumption. When showing darker images that don’t require high brightness, the light source output decreases.

Installation Advantages

Easy Lens Shift Operation
With the isolated vertical and horizontal lens shift tab, it is easy to adjust the position of projected images.

VPLPHZ10 Lens Shift

Tilt Angle-free
Enjoy greater installation flexibility by positioning the projector freely at any angle – on its side or even upside down.

VPLPHZ10 Tilt Angle 360

Advanced Geometric Correction
Each corner and side can be grabbed and fit squarely to the desired position. This feature is useful when an offset projection is necessary.

VPLPHZ10 Geometric Correction



Simple Installation with HDBaseT
HDBaseT is a multi-signal transmission system via a single cable, which simplifies the installation task. It cuts total system cost by reducing not just cabling requirements but also the number of required signal extenders and receiver boxes.
One Cat5e/6 cable can run up to 100 meters, reducing the number of cable runs and eliminating the need for signal extenders. And fewer signal extenders and receiver boxes mean fewer potential points of failure. In addition, Cat5e/6 cables are much easier to terminate than cables such as HDMI, and therefore can be simply and quickly terminated even onsite during the installation process.

VPLPHZ10 HDBaseT



Professional Calibration
The projectors offer a professional calibration function to adjust the hue, saturation and brightness of each target color to get exactly the picture you want. With this capability, you can tweak the images to perfection.

VPLPHZ10 Calibration

In addition, the projectors adjust the color space for red, green and blue, tweaking the images according to the installation condition.

Super Quiet Operation Noise
High fan noise is typical in virtually any condition. But the VPL-PHZ10 and VPL-PWZ10 offer Sony’s blend-in design which combines a compact, slim design with the industry’s lowest fan noise in this class of laser- phosphor 3LCD projector. This ensures discreet, unobtrusive operation in quiet environments, from classrooms to meeting rooms.
*1 VPL-PHZ10/PWZ10 : 36 dB/28 dB/25 dB (Light Mode: Standard/Middle/Low)

User Advantages

Save Time with Every Presentation
The laser projectors deliver instant on/off. Turn the unit on and you have immediate full brightness. Turn it off and you’re done. You’re not even limited in the number or duration of on/off cycles. It’s the total convenience that today’s users expect.

Picture Mode
New modes ensure great-looking pictures in any presentation conditions. Select Standard, Dynamic, Brightness Priority, or Multi-screen Picture mode for optimized image quality, with any source, in any room.

VPLPHZ10 Quick Start

Built-in Auto Calibration
After extended periods, color can be automatically calibrated to the original factory condition. There’s no need for extra calibration equipment or cameras; a built-in color sensor stores all the necessary information.

Closed Captioning
Official teletext broadcasting, developed by the NCI, USA

Network and Control
Controls and monitors projector status Compatible with various control systems

Input Label
Input labels can be customized in the on-screen menu for user-friendly clarity. This gives you a clear understanding of which equipment is connected.

Network Presentation Portable Edition
The portable edition function allows you to install the Network Presentation application into a general-purpose USB mass storage device. This enables guest users to run the Network Presentation application via the USB device without having to install the app on their own laptop.

VPLPHZ10 Network Presentation

IP Control Sync. function
Received control signals (power on/off, select input terminal) from a master projector can be distributed to additional projectors via a network.

VPLPHZ10 Network Control

Three-way Wireless Connection
Three different methods of wireless connection are supported to maximize performance for each situation.

VPLPHZ10 Networking





Specifications

Display system

Display system 3 LCD system

Display device

Size of effective display area 0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels

Projection lens

Focus Manual
Zoom - Powered/Manual Manual
Zoom - Ratio Approx. x 1.45
Throw ratio 1.28:1 to 1.88:1
Lens shift - Powered/Manual Manual
Lens shift - Range Vertical +20% to +55%
Lens shift - Range Horizontal +/- 10%

Light source

Type Laser diode

Filter cleaning / replacement cycle (Max.)

Filter cleaning / replacement cycle (Max.) 20,000 H (service maintenance)

Screen size

Screen size 40" to 300" (1.02 m to 7.62 m)

Light output

Mode: Standard 5,000 lm
Mode: Middle 4,000 lm

Color light output

Mode: Standard 5,000 lm
Mode: Middle 4,000 lm

Contrast ratio (full white / full black) *1

Contrast ratio (full white / full black) 500,000:1

Speaker

Speaker 16 W (monaural)

Displayable scanning frequency

Horizontal 15 kHz to 92 kHz
Vertical 48 Hz to 92 Hz

Display resolution

Computer signal input Maximum display resolution: 1920 x 1200 dots *2
Video signal input NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p

Color System

Color System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal +/- 30 degrees
Vertical +/- 20 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN Video input connector: BNC
Audio input connector: Shared with INPUT A
OUTPUT Audio output connector: Stereo mini jack
REMOTE D-sub 9-pin (male) / RS232C
LAN RJ45, 100BASE-TX (Shared with INPUT D)
USB TYPE-A
USB TYPE-B

Acoustic Noise

Lamp Mode: Standard / Middle / Low 36 dB / 28 dB / 25 dB

Operating temperature / Operating humidity

Operating temperature / Operating humidity 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)

Storage temperature / Storage humidity

Storage temperature / Storage humidity -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Power requirements

Power requirements AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz

Power Consumption

AC 100 V to 120 V Mode: Standard: 424 W
AC 220 V to 240 V Mode: Standard: 403 W

Power Consumption (Standby Mode)

AC 100 V to 120 V 0.5 W (when "Standby mode" is set to "Low")
AC 220 V to 240 V 0.5 W (when "Standby mode" is set to "Low")

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V 12.5 W (LAN)
13.2 W (optional WLAN module)
16.8 W (HDBaseT)
17.4 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V 11.9W (LAN)
12.6W (optional WLAN module)
17.0W (HDBaseT)
17.6W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Standby Mode / Networked Standby Mode Activated Approx. 2 Minutes

Heat dissipation

AC 100 V to 120 V 1446 BTU/h
AC 220 V to 240 V 1374 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions) 510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches)

Mass

Mass Approx. 8.7kg (19 lb)

Supplied accessories

Remote commander RM-PJ8

Notes

*1 The value is average
*2 Available for VESA Reduced Blanking signal.
Connection Panel
VPLPHZ10 Connections
