BenQ MH560 DLP Full HD Multipurpose Projector

benq mh560 projector
Delivery

$1,199 $1,099

Save $100. Must End 31st March

special

PREORDER - Stock Due 19th April


1yr warranty
australian stock
insured delivery
svga resolution

Specifications

  • WUXGA 1920 x 1080 16:9
  • 3800 ANSI Lumens
  • 20,000:1 Contrast
  • 2.3kg Weight
  • 32 / 29db(eco) Fan Noise
  • 2 Year Warranty
  • 6 Month / 750hrs Lamp Warranty
  • Est. Lamp Life up to 15,000hrs

Key Features

  • Vertical Keystone Correction
  • 2x HDMI connections
  • 10W Inbuilt Speaker
  • 3D Capable (3D glasses required)

BenQ MH560 Throw Distance Chart

Throw Ratio: 1.49-1.64:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm From 3.0m to 3.3m
100" (16:9) 2214x1245mm From 3.3m to 3.6m
110" (16:9) 2435x1370mm From 3.7m to 4.0m
120" (16:9) 2657x1494mm From 4.0m to 4.3m
135" (16:9) 2990x1681mm From 4.5m to 4.9m
150" (16:9) 3320x1867mm From 5.0m to 5.4m

BenQ MH560 Multimedia FULL HD Projector

The MH560 combines a vibrant 3800 lumens brightness for lights on viewing with a crisp Full HD resolution perfect for video and detailed presentations. With a lamp life up to 15,000 hours it is cheap to run long term making it perfect for heavy use environments. Weighing in at a mere 2.3kg the MH560 is light weight for portable use but can easily be installed. With both VGA and dual HDMI inputs the MH560 can good connectivity and also comes with a USB power port to power up wireless dongles, avoiding the need for a separate power adapter.

key features

  • 3800 ANSI Lumen High Brightness for Stunning Presentations
  • 20,000:1 High Native Contrast for Crisp Readability
  • Dual HDMI inputs for multiplatform digital connectivity
  • Simple Setup, Intuitive Operation, and Hassle-Free Maintenance
  • Eco-Friendly Low Total Cost of Ownership
mh560 lens

mh560 features

HDMI for Fast Transmission

HDMI connectivity provides faster data transmission to digital devices

Dual Connectivity, Dual Convenience

Dual HDMI offers more flexible connectivity between devices

Time-Saving Convenience

Automatically turns on the projector once the HDMI input signal is detected

3800 Lumens, 20000: 1 Contrast

High brightness & contrast images even in well-lit meeting rooms

mh560 clear

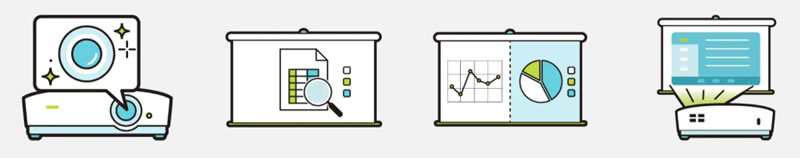

Crystal-Clear Images

All glass lenses for image quality in brilliant clarity

Clear Data Review

Data Review Mode makes every letter and digit leap to the eye with clarity

Detailed Infographics

Exclusive Infographic Mode showcases the text and graphics in detail

Clear User Interface

Intuitive windows design to display the contents clearly

mh560 keystone

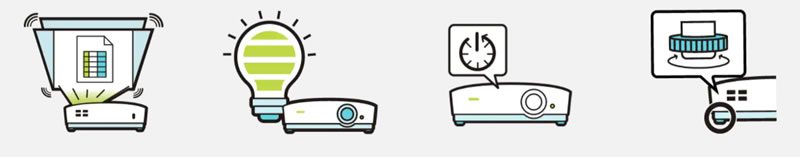

Auto Vertical Keystone for Perfect Alignment

Project the image from any angle and get the perfect squared image with Auto Vertical Keystone. It’s to quick to eliminate the blurry images and get to the point in the meeting

Lamp Life up to 15,000 hrs

SmartEco Mode saves lamp power up to 70%

Power-Saving, Energy-Saving

Auto Power Off shuts itself off for power savings after the projector detects no input signal for 20 minutes. (This can be also operated via the OSD)

Easy Setup

Ergonomic retractable foot for easy setup

mh560 instant on

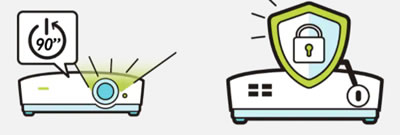

Get Instant ON

Turn on the projector again within 90 secs after power off and you can start it up in no time

Enhanced Security

Kensington Lock for physical security to discourage theft

mh560 mobile

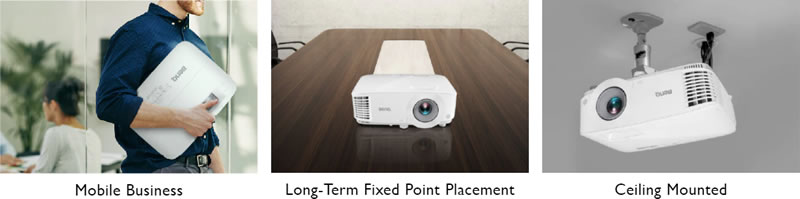

Mobile Business

Long-Term Fixed Point Placement

Ceiling Mounted

All-in-One Solution that Solves It All

No more fuzzy texts and figures

Perfect Combination of Stunning Clarity and Crafted Colors.
Finest Precision Glass Lenses for Crystal-Sharp Clarity.
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.

mw560 dispersion lens

Exclusive Color Craft Calibrated to Suit Your Needs

mh560 colour craft

Presentation Mode

Designed for presentations with vivid colors. In this mode, the brightness is emphasized to match PC and notebook coloring.

Infographic Mode

Great for showcasing the text and graphics of infographic in detail thanks to the high brightness and better color gradation.

Data Review Mode

Review your reports with Data Review Mode. Its emphasized contrast and clarity speed up your meeting and strategy-making process

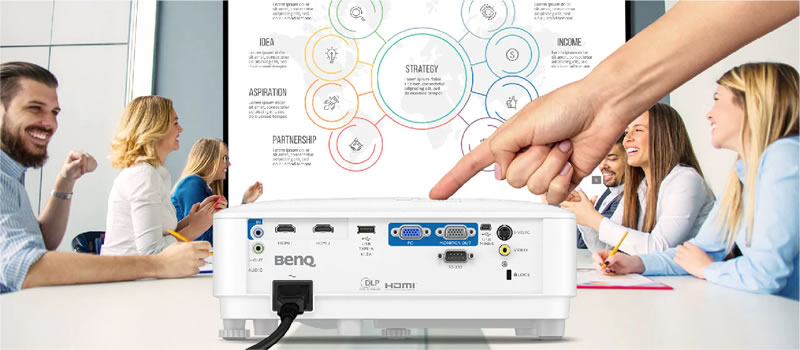

No More Waiting - Start Meetings in a Blink

mh560 meetings

No more irritating maintenance and energy waste

Save Power, Save Manpower

mh560 eco

mh560 power saving

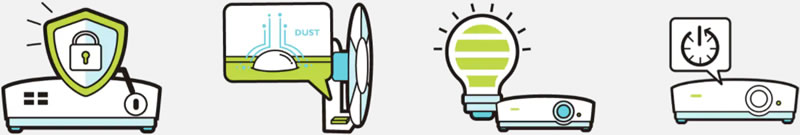

Kensington Lock

Designed to secure tabletop projectors, the Kensington lock interface provides “physical” security.

Anti-Dust Accumulation Sensor

Rejects dust accumulation, enhancing device durability and hence reducing maintenance costs.

SmartEco Mode

Conserving up to 70% of lamp power for a lamp life of up to 15,000 hrs.

Power-Saving, Energy-Saving

MH560 shuts off if the projector detects no input signal for 20 minutes. (Also accessible via the OSD)

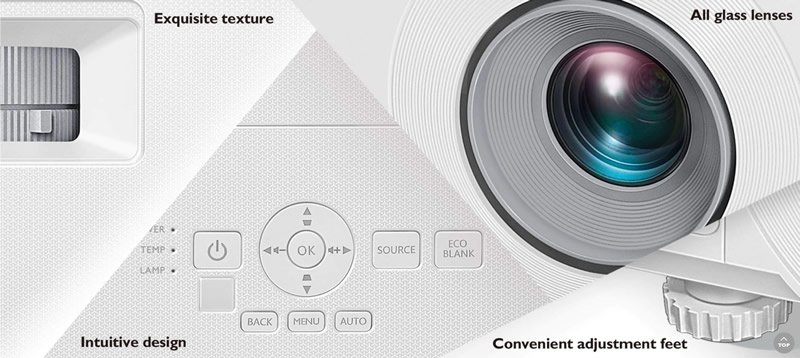

Details that Make a Difference

mx560 features


Specifications
Display
Projection System DLP Single 0.65" WXGA
Resolution 1920 x 1080 pixels
Brightness (ANSI lumens) 3800 ANSI Lumens
Contrast Ratio (FOFO) 20,000:1
Display Color 30 Bits (1,07 billion colors)
Native Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Light Source Lamp
Light Source life*

Normal 6000 hr
Economic 10000 hr
SmartEco 10000 hr
LampSave 15000hr

Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)

Optical
Throw Ratio 1.49~1.64
Zoom Ratio 1.1X
Lens shift NA
Projection Offset** 110%
Projection Size 70"~150"
Keystone Correction Auto ID, Vertical +/- 40 degrees

Audio
Speaker 10W x 1

Special Feature
Security Security Bar, Kensington lock
Feature 1D Auto Keystone, High Brightness, Spreadsheet mode, Bright Mode, Presentation Mode, Infographic Mode, Video Mode, Srgb Mode
Interface
Composite Video in (RCA) x1
S-Video x1
VGA x1
USB Power x1
HDMI x2

Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p), HDTV (720p, 1080i/p 60Hz)

Power
Power Comsumption(Max/Normal/Eco) Max 280W, Normal 260W, Eco 215W
Standby Power Comsumption Normal < 0.5Watts.
Power Supply 100 ~ 240V AC

Dimension and Weight
Net Weight (Kg/ lbs ) 2.3kg +/- 200g
Dimensions (W x H x D)(mm) 296 x 120 x 221 mm

Operation Condition
Noise Level(Normal/Eco) 32 /29 dBA
Operating Temperature 0~40℃

Accessories (Standard)
Remote Control w/ Battery x 1 (5J.JND06.001)
Power Cord (by region) x 1 (1.8m)
Warranty Card (by region) x 1
VGA(D-sub 15pin) Cable x 1 (1.5m)
AAA Battery x2
QSG x1 (4J.JND01.001)

OSD
OSD Language Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages)

What's in the Box
remote control
Remote Control
power cord
Power Cord

Rear Panel

mh560 rear panel
