|Optoma HD30HDR Throw Distance Chart (Examples for common Sizes)
(Approx. To Lens)
|92" (16:9) 2030x1140mm
||From 3.0m to 3.3m
|100" (16:9) 2130x1200mm
||From 3.2m to 3.4m
|110" (16:9) 2435x1370mm
||From 3.6m to 3.9m
|120" (16:9) 2580x1450mm
||From 3.9m to 4.2m
|135" (16:9) 2990x1681mm
||From 4.4m to 4.8m
|150" (16:9) 3320x1867mm
||From 4.9m to 5.3m
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 3800 ANSI Lumens
Maximum Contrast: 50,000:1
Fan Noise: 26db (eco)
Warranty: 2 Years (+1 Year $119)
Lamp Warranty: 12months/1000hrs
Lamp Life Up To: 15,000hrs
- HDR10 Compatible
- Rec. 709 Colour Calibration
- Vertical Keystone Correction
- 2x HDMI Connection
- 3W Speaker
- 3D Capable(3D glasses required)
- Fast Gaming Modes

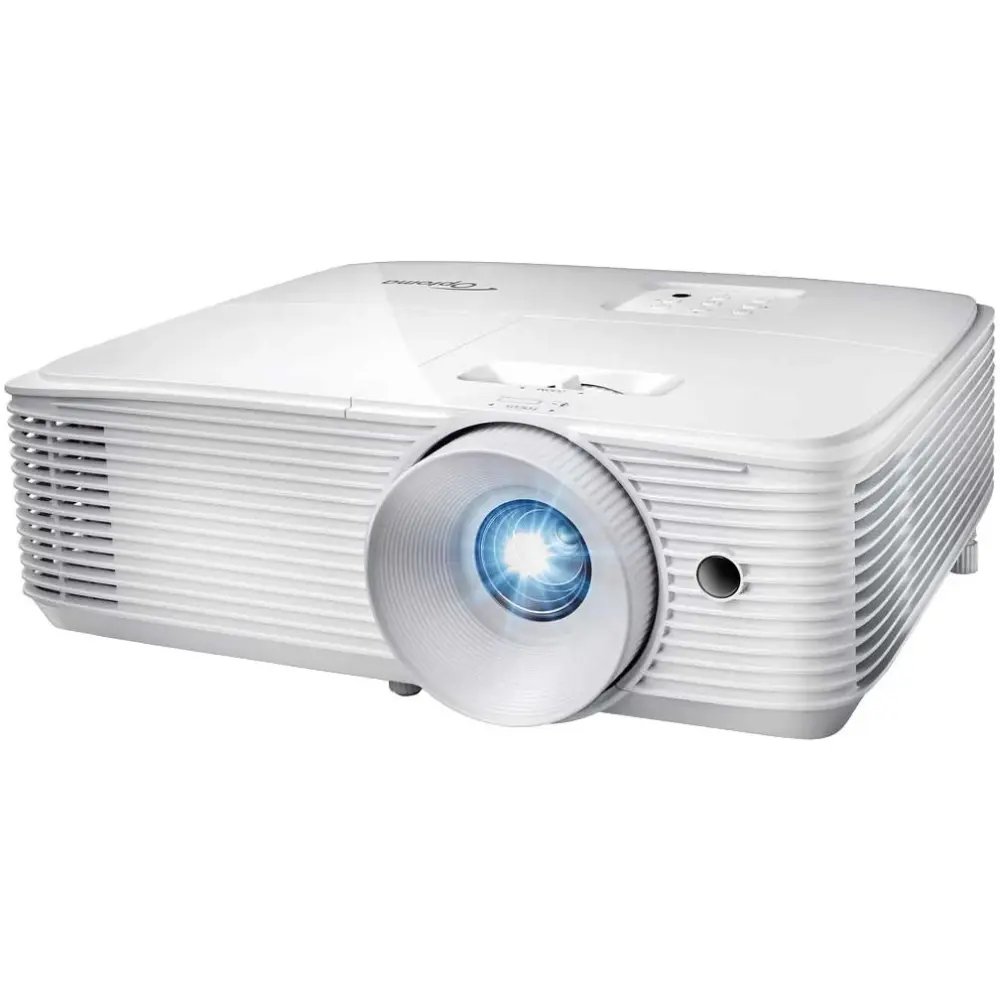

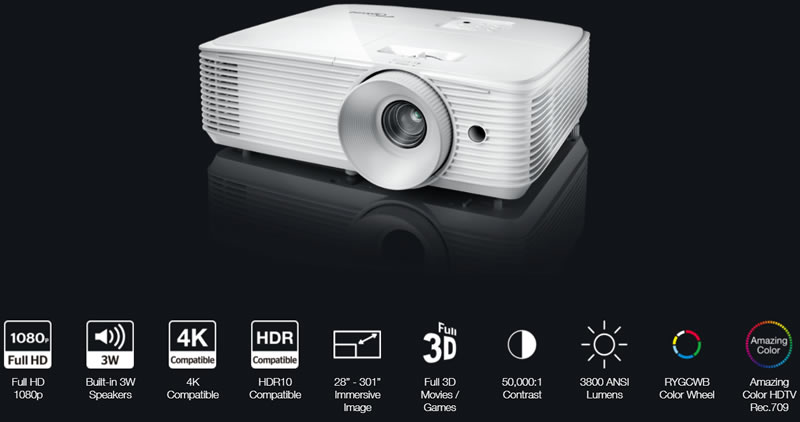

Optoma HD30HDR Bright 1080p Gaming and Home Theatre Projection
The Optoma HD30HDR is a new release home theatre projector deigned to provide a bright high contrast picture and detailed 1080P resolution. The HD30HDR offers a long 15,000 hour lamp life for low running costs and a high brightness so can handle a room that has a little light filtering in. With HDR10 it can produce a High Dynamic Range within the projected image meanng both bright light and dark at the same time for a more vibrant picture. It features a fast gaming mode so can handle even the fastest first person shooter games and action sports.
Optoma HD30HDR big screen for home entertainment
- 4K Signal Compatible, capable to accept native 4K signals
- Stunning HDR performance (HDR10 compatible)
- Enhanced Gaming Mode for superb gaming experience
- Bright 3,800 ANSI Lumens, lights on viewing, vibrant in all conditions
- Dual HDMI ports with HDCP2.2 support
- Supports Full 3D and Auto 3D Display Mode
- 15,000 Hours Long Lamp Life, quiet operation.
- Built-in 3W Speaker with 10-phase Volume Control
Embrace HDR technology and large screen experiences with the 3,800 lumen HD30HDR Full HD home entertainment projector. Its HDMI 2.0 with HDCP 2.2 input and 50,000:1 contrast ratio accepts HDR10 content for brighter whites and deeper black levels with vivid colors for an unmatched 1080p experience.
An enhanced gaming mode compatible with 1080p HDR sources, reduces input lag to 8.4ms for lightning-fast response when connected to the latest HDR ready gaming consoles and PCs. Full 3D 1080p support enables immersive cinematic experiences in movies and games. Vertical keystone and a 1.1x zoom bring flexible mounting and installation. Up to 15,000 hours of lamp life ensures long-term reliability for years of entertainment with minimal maintenance.
HD30HDR 4K / HDR Compatible
HD30HDR is capable to accept native 4K signals and compatible with HDR, to enhance the details and depth of field, making the images clearer and more realistic.
4K HDR compatible
HD30HDR makes home entertainment simple, with HDMI 2.0 and USB power supply compatibility. Moreover, it supports 4K resolution and native resolution 1080p export, as well as HDR10 video format. Choose films you want to see online without wasting time researching video format compatibility. Enjoy watching movies in high definition simply and easily.
HD30HDR supports HDR10. When a signal is imported, the projector automatically switches to HDR display mode. Through Optoma’s HDR tone mapping technology, it enables HDR movies or games to be presented with optimized performance in high contrast and vivid colors.
HDMI Link - One Button for Powering on (CEC)
To watch a movie is it necessary to turn on the set top box and then the projector ? With HD30HDR’s HDMI Link function, this is reduced to one step. After initiating the HDMI Link settings, just turn on/turn off the set top box. The projector automatically turns on/turns off.
(Note:1. This function is only supported at the external device end and with CEC-HDMI controls.2. Operational items: Power on/Power off)
HD30HDR incorporates DLP projection technology and uses the latest Texas Instruments 1080p DMD chip & DDP4422 GPU.
Cinema-Quality High Resolution Images
HD30HDR incorporates RYGCWB color wheel and performs sharp 4K compatible with HDR high-definition images. Through Optoma’s specialized color calibration and mixing technologies, enjoy 3,800 lumens of brightness and outstanding color with accurate HDTV standard Rec. 709 color gamut. This is a cinema-quality projector for use at home.
DLP® BrilliantColor™ Technology
For UHP lamps, this technology is able to achieve up to 50% improvement in brightness over traditional three color solutions. BrilliantColor technology offers up to six-color processing enabling a wide color gamut and making it possible to produce over one billion colors.
The Smart and Simple Way to
Watching movies is easy. With the touch of a button, switch to “Cinema” display mode, image performs true to life with high contrast by the specific Gamma curve. At the meantime, it activates Brilliant Pulse on Red function to make the light pulse projects on the red segment of the color wheel. Red enhancement makes images more natural skin tones, better color saturation and more enjoyable viewing experience.
Dynamic Black can accurately control light bulb output power and automatically adjust it based on different image brightness. There is no need to use an aperture ring to adjust for dark scenes. With Auto Gain function, details are more pronounced and an increase in contrast ratio of nearly three times is achieved. This means that images appear true to life with dramatic increase in contrast.
HD30HDR The First Choice In Gaming Optoma Game Master
Display Mode for Gaming
[ Game ] Display Mode
Something Hidden in the Dark
Shadow Boost. All-day simulations
In Optoma’s Color Lab, simulations were carried out for gaming in different ambient light settings to calibrate and boost the details in the dark and develop the exclusive “Game” display mode. This means that gamers can avoid getting stuck at a certain level, as they can clearly find the gimmick hidden in the dark.
[ Vivid ] Display Mode Reveal a Fantastic World
Huge dynamic range. Best balance between brightness & color saturation.
Optoma’s Color Team focused on gaming content that is high in resolution and rich in color to develop the “Vivid” display mode. In this mode, the best balance between color saturation and brightness is achieved, bringing characters and action to life.
Lag-Free Gaming 8.4ms Input Lag
HD30HDR is the first choice in the Optoma Game Master series. It comes with “Enhanced Gaming” mode. Gamers enjoy low-latency between operation of controls and win the game in milliseconds.
1.When input signal is 1080p@60Hz, 1080p@120Hz Enhanced Gaming Mode can be used. Output display 1080p@60Hz, Input lag 16ms. 1080p@120Hz, input lag 8.4ms.
2.In order to reach minimum response time, when using Enhanced Gaming mode, the features such as keystone correction, image shift, and edge mask will be disabled.
Ultimate Smoothness 120Hz Refresh Rate
The refresh rate is the number of times your display device updates with new images each second. 120 Hz refresh rate reproduces motion with the ultimate smoothness and clarity. HD30HDR’s produces great picture quality with 120Hz refresh rate for fast gaming action with virtually no motion blur.
HD30HDR supports HDMI 1.4a 1920×1080 3D Blu-ray 3D movies, digital television, and gaming with super high refresh rate of 144Hz. Images do not appear in a series or shake, reducing viewing fatigue.
Auto Display Mode for 3D
Optoma provides “3D” display mode to resolve the issues related to variations in brightness of 3D images due to overlapping signals and use of specialized lenses. When a 3D signal is received, the system directly switches to [3D] mode to elevate image brightness and contrast.
Projecting on Any wall
Six color compensation are provided to suit different types of wall spaces in the home and avoid distortion of colors. Even in the absence of a projection screen, images can be viewed on a wall space with the most accurate color gamut.
26dB Quiet Fans
In Eco Mode, only the quiet-running fans emit 26dB. Movies can be viewed without interference from projector operating sounds.
Built-in or External Speaker
Options for Convenient Sound
