Optoma P2 DLP 4K UHD Ultra Short Throw Laser Projector
For current Optoma projectors please click here.
Specifications
- UHD 3840 x 2160 16:9
- 3000 ANSI Lumens
- 2,000,000:1 Contrast
- 11kg Weight
- 24db (eco) Fan Noise
- 3 Year/ 20,000hr Warranty
- 3 Year/ 20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- Long Life Laser Lightsource
- Rec. 709 Colour Calibration
- HDR10 Compatible
- HDMI Connection
- HDMI 2.0 Connection
- Streaming Media Player (wireless)
- Bluetooth Audio
- 3D Capable(3D glasses required)
- 40W Powerful Speaker
Optoma P2 Throw Distance Chart
Throw Ratio: 0.25:1 (distances shown to CHASSIS)| Image Size | Installation Distance | |
|---|---|---|
| 92" (16:9) 2030x1140mm | Approx. 18cm | |
| 100" (16:9) 2130x1200mm | Approx. 21cm | |
| 110" (16:9) 2435x1370mm | Approx. 29cm | |
| 120" (16:9) 2657x1494mm | Approx. 34cm | |
Optoma Cinemax P2 4k UHD Ultra Short Throw Laser Projector
The Optoma Cinemax P2 4K laser projector is perfect for an easy clean projector setup without the complex installation. This projector is built to pop onto a TV unit turn on focus and enjoy. No complex cabling, no electricians, mounts or measuring tape to make sure you have the right position. For a TV eclipsing 120 inch picture the Optoma P2 only needs 64cm distance from the wall or screen. With the revolutionary Laser light source the P2 is built to last with a light source life up to 30,000 hours you won’t need to worry about down time or spare lamps. With HDMI ports it is ready to plug in a PlayStation or Xbox and with inbuilt apps wireless and Bluetooth it can function as a stand-alone projector without the need for other media players to run the movie.
Smart True 4K UHD Laser Home Theater Projector
Transform your living room into an incredible home cinema with the 3,000 lumens, ultra-short throw Optoma CinemaX P2 Smart True 4K UHD laser home theater projector. The laser light source, auto focus, high-performance glass lens and SmartFIT auto geometry correction system ensure hassle-free image alignment and easily produces stunning 120-inch projection with rich HDR color.
An integrated Dolby Digital 2.0 soundbar with two full range speakers, two woofers, ported chambers and 40-watts of power delivers crisp details with superior dialogue clarity. Smart+ technology enable Amazon Alexa, Google Assistant and IFTTT support for easy integration into your smart home while the Android OS with smart TV apps and Optoma Marketplace deliver USB media playback compatibility, internet streaming services and downloadable apps.
- Bright 3,000 lumens laser light source with 2,000,000:1 contrast ratio
- Stunning 4K UHD resolution
- RGBRGB Color Wheel for Rich Cinematic Color and Stunning HDR
- 40W Dolby Digital 2.0 soundbar with 2 full range speakers and 2 woofers
- SmartFIT companion app with auto geometry correction system
- Smart+ technology with Alexa, Google Action and IFTTT integration
Spectacular accurate color
120% (area ratio)
Rec. 709 Color Gamut Coverage delivers astonishing rich color performance with 1.07 Billion colors
6-segment color wheel
Experience enhanced brightness, richer colors and vibrant reds with the six-segment color wheel. The RGBRGB color wheel brings accurate cinematic color to your home, reproducing movies, TV and games the way the director envisioned it.
Stunning HDR10 Performance
HDR10 compatibility ensures the Optoma CinemaX P2 renders vivid 4K UHD content. Optoma HDR tone mapping combined with dynamic contrast presents an optimized image with brighter whites, deeper black levels and realistic colors that jump off the screen for an immersive visual experience.
2,000,000:1 Contrast
Laser dimming technology produces outstanding black levels, allowing for more details and clarity.
Pure Motion
Enjoy smooth action-packed movements with PureMotion technology. The video processing technology takes videos filmed in 24fps and inserts transitional frames to compensate for motion blur and reduce motion judder, resulting in pure fluid motion.
Experience more.
True 4K UHD resolution, HDR10 compatibility, pure glass optics, a laser light source, PureMotion image processing and premium sound come together in a sleek form factor to produce accurate, razor sharp and high-quality images.

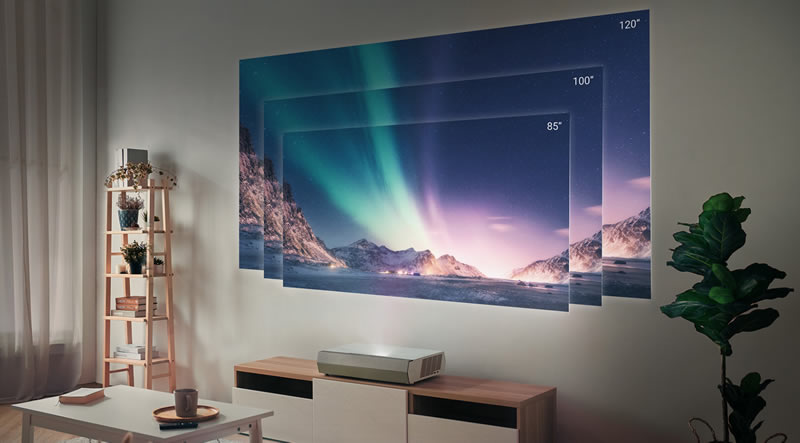

Ultra Short Throw – up to 120” image
The CinemaX P2’s space-saving, ultra-short throw design provides convenient placement for a huge screen experience – up to 120 inches from inches away.

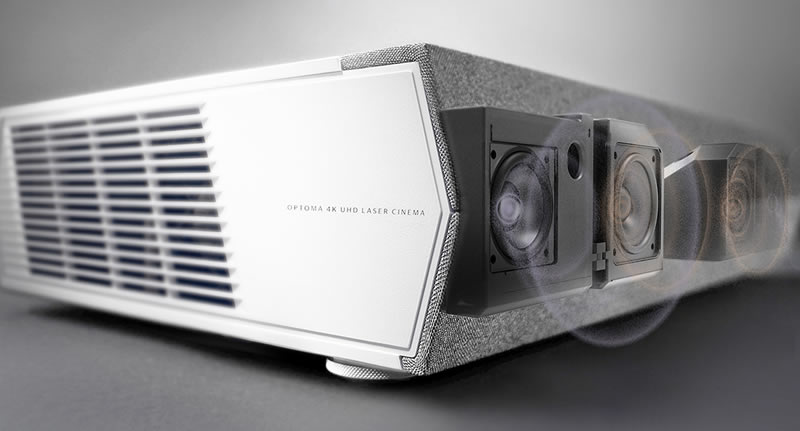

Premium Audio
Dolby Digital 2.0 soundbar with two full range speakers, two woofers, ported chambers and 40-watts of power deliver crisp details.

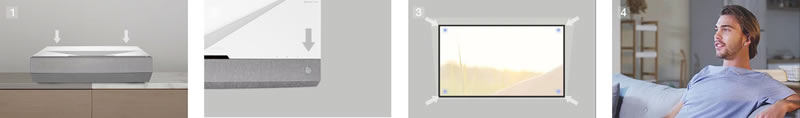

Intuitive Installation
Step 1
Put on existing TV cabinet
Step 2
Power on (within 5 secs)
Step 3
Adjust 4 corner, focus
Step 4
Enjoy favorite content from HDMI (Chromecast Ultra, Shield Pro, FireTV 4K, Apple TV 4K, Roku Ultra 4K, Xbox One X, PS4 Pro)

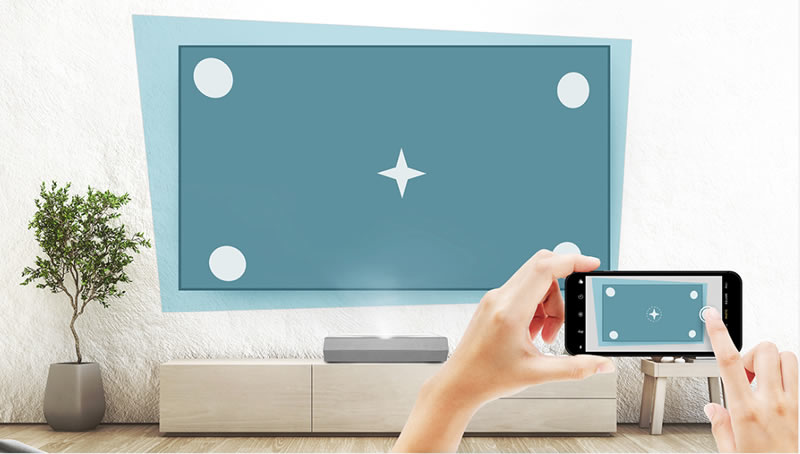

Easy image alignment
SmartFIT image alignment system ensures hassle free setup using a smartphone.
P2 adjustment:
- Install SmartFIT App
- Adjust ALR screen and take a photo
- Perfect fit within 2 secs

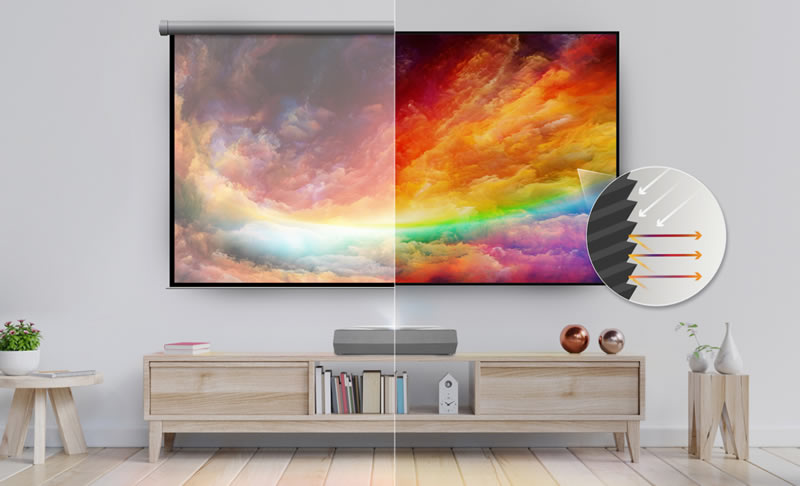

Better with ALR
Combat ambient light for superior daytime and lights-on viewing with an ambient light rejection (ALR) screen. ALR screens feature unique triangle micro structures on the screen surface that block reflections for vivid colors and incredible details at any time of the day.

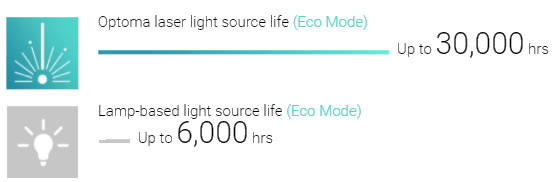

Durable and Reliable Laser Light Source
Laser technology delivers outstanding brightness up to 30,000 hours of light source life that maintains stunning image and color quality throughout the lifespan – no lamp replacements necessary.
CinemaX P2 Global Awards
- EISA Award Best Product (Projector) 2020-2021 (Europe)
- Red Dot DESIGN AWARD 2020 (Germany)
- iF DESIGN AWARD 2020 (Germany)
- Silver Award, Taiwan Excellence 2020 (Taiwan)
- Projector Central 2020 Editor’s Choice Award (USA)
- GOOD DESIGN AWARD 2019 (Japan)
- Engadget Best of CES 2019 finalist (USA)
- Best of CES Asia 2019 ZOL (China)
- Gotta Be Mobile Best of CES 2019 (USA)
- Projector Central 2019 Infocomm Best of Show Award (USA)
- CIT 2019 Comprehensive Performance Award(China)
Easy sharing with TapCast
Use your mobile device with the TapCast companion app to easily cast images, documents and screen share from supported devices.
Replace Your TV and Bring the Cinematic Experience Home
Experience huge-screen entertainment with the Optoma CinemaX P2 for a cinematic experience at home. The simple place and play setup enables screen sizes up to 120 inches easily while taking up very little space.

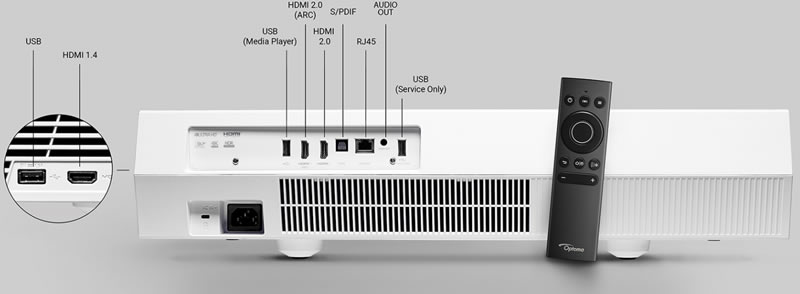

Extensive I/O connectivity
| Aspect Ratio | 16:9 (native), 4:3, auto compatible |
|---|---|
| Audio | Premium Dolby Digital 2.0 soundbar (40W, 2 full range drivers, 2 woofers with ported chambers). 4 Sound Effects (Movie, Music, Sport, Game, Night) |
| Brightness | 3,000 ANSI lumens |
| Color Depth | 3840 x 2160, 30Hz YUV 4:4:4 / 4:2:2 / 4:2:0 (8 /10 / 12 bit), 3840 x 2160, 60Hz YUV 4:4:4 / YUV 4:2:2 (8bit), YUV 4:2:0 (8 / 10 / 12bit) |
| Color Gamut Support | REC.709, DCI-P3, REC.2020 |
| Color Wheel | 6 segment RGBRGB |
| Contrast Ratio | 2,000,000:1 (Dynamic Black enabled) |
| Digital Zoom | 0.8 – 2.0x |
| Display Technology | Texas Instruments™ 0.47” 4K UHD ECD DMD |
| Displayable Colors | 1.07 billion |
| Geometry | SmartFIT companion app (Android and iOS) with auto geometry correction system |
| HDR (High Dynamic Range) | HDR SIM (simulate HDR effect with non-HDR content), HDR10 compatible (REC.2020), Picture Modes: Normal, Bright, Detail, Film |
| High Altitude | Operating temperature at sea level up to 10,000 feet = 104° F (max); Must manually switch to high altitude mode from 5,000 feet and above (using OSD menu) to maintain optimal functionality. |
| Image Size | 85” – 120” |
| Input Response | 67.6ms (4K UHD, 60 Hz) / 67.1ms (1080p, 60Hz) SmartFIT and PureMotion must be disabled for PC and console gaming. |
| Keystone Correction | +5/-10 vertical, ±5° horizontal |
| Light Source Life | Up to 30,000 hrs (Eco), 20,000 hrs (Normal) |
| Light Source Type | Laser |
| Maximum Input Resolution | 4K (4096 x 2160, 30Hz), 4K UHD (3840 x 2160, 60Hz) |
| Native Resolution | 4K UHD (3840 x 2160) |
| Noise Level | 24dB |
| Offset | 124% +6%/-2.5% |
| Operating Temperature | 41–104°F (5–40°C), 85% max humidity |
| Power Consumption | Bright: 410W max, 360W typical, Eco: 255W max, 225W typical |
| Power Supply | AC input 100–240V, 50–60Hz, auto-switching |
| Projection Distance | 8″ – 16.5″ (back of projector to projection surface) |
| Projection Method | Front, rear, ceiling mount and table top |
| Remote Control | Bluetooth smart home remote and air mouse |
| Throw Ratio | 0.25:1 |
| Uniformity | 90% |
| Video Processing | Upscales WXGA, 720p, 1080p, WUXGA, 1440p up to 4K UHD (3840 x 2160, 60Hz), PureMotion technology |
| Wireless Security | WEP, TKIP, AES, WPA, WPA2 |
| 3D Compatibility | 3D glasses are needed and sold separately, Refer to user manual for details., Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). |
| Computer Compatibility | VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60Hz), 4K DCI |
| Control | Crestron Roomview, HDMI-CEC, Smart+ (Amazon Alexa, Google Actions, IFTTT compatible) |
| Horizontal Scan Rate | 15.375 ~ 91.146 KHz |
| I/O Connection Ports | 2x HDMI 2.0 (HDCP 2.2, 18Gbps) (HDMI CEC & ARC compatible), 1x HDMI 1.4a (HDCP 1.4) (side), 2x USB 2.0 (rear, for 4K USB media player), USB power (service) |
| USB Media Player Compatibility | Audio: MP3, AAC, WAV, FLAC 16/24-bit, Files: MKV, MP4, M4V, AVI, H.264, HEVC, MOV, TS, Images: JPEG, BMP, GIF, Videos: 480p, 720p, 1080p, 1440p, 4K UHD, HDR10, HLG |
| User Controls | Graphic user interface and on-screen menu in 27 languages |
| Vertical Scan Rate | 50 ~ 85 Hz (120 Hz for 1080p 3D feature) |
| Video Input Compatibility | PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD (24/30/50/60Hz) |
| Dimensions | 56.1 x 12.9 x 38.1cm |
| Recommended furniture height | 13” – 18” (124% offset) |
| Security | Kensington® lock port, password (OSD) |
| Weight | 11kg lbs |
| What's in the Box? | CinemaX P2 projector, distance cards, quick start user manual, Bluetooth smart home remote with Airmouse (rechargeable), power cable |
| Accessories Part Numbers | 4K UHD Casting and mirroring adapter: UHDCast Pro, Bluetooth smart home remote with Airmouse (replacement): BR-3074R, CinemaX P2 distance cards (replacement): BD-25120 |
| Bluetooth | Bluetooth 4.0 |
| Firmware | OTA updates via Wi-Fi or ethernet |
| Wi-Fi | 802.11ac (dual-band, 2×2) |
| Alexa AV Gear Region Support | United States – English, Canada |
| Amazon Alexa Custom Skill | Commands: change display mode, HDR picture mode, PureMotion setting |
| Amazon Alexa Smart Home Skill | Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over) |
| Google Assistant Actions | change display mode, HDR picture mode, PureMotion setting, Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over), |
| Google Assistant Region Support | All regions – English only |
| Operating System | Android 8.0 with customizable launcher |
| Smart Home Features | Amazon Alexa, Google Assistant & IFTTT |
| SmartFIT | iOS (App Store) & Android (Play Store & Amazon Appstore) |
| USB Image & Document Viewer | Autoplay PDF/PPT: 3, 5, 10, 15 & 20s intervals, Office documents (Word, Excel & PowerPoint), PDFs and images |
| Video streaming | Available Optoma Marketplace with access to YouTube 4K, Netflix (480p), |
