Optoma ZU720T DLP Large Venue Full HD Laser Projector

optoma zu720t projector
Delivery

DISCONTINUED

For current models Click Here:
Optoma ZU820T

3yr warranty
australian stock
laser projector
1080p resolution

Specifications

  • WUXGA 1920 x 1200 16:10
  • 7500 ANSI Lumens
  • 1,000,000:1 Contrast
  • 12.7kg Weight
  • 27db (eco) Fan Noise
  • 3 Year / 20,000hr Warranty
  • 3 Year / 20,000hr Laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • Long Life Laser Lightsource
  • Horizontal & Vertical Keystone
  • 55% Vertical Lens Shift
  • 25% Horizontal Lens Shift
  • 2x HDMI Connection
  • HDMI Out
  • Powered Focus / Zoom
  • 1.8x Zoom
  • 360° Installation (v&h axis)
  • Portrait Installation
  • Geometric Correction
  • IP6X Dust Resistant Optical Engine
  • HDBaseT Compatible

Optoma ZU720T Throw Distance Chart

Throw Ratio: 1.4-2.5:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 2.9m to 5.0m
110" (16:10) 2370x1480mm From 3.4m to 5.9m
120" (16:10) 2585x1615mm From 3.7m to 6.4m
130" (16:10) 2800x1750mm From 4.0m to 7.0m
140" (16:10) 3015x1885mm From 4.3m to 7.5m
150" (16:10) 3230x2020mm From 4.6m to 8.0m

Optoma ZU720T Laser Projector

The Optoma ZU720T is purpose built for large venue installations with an incredible 7500 lumen brightness level perfect for large scale projection in a bright room. The ZU720T is fitted with a sealed IP5X rated optical engine stopping dust from getting into the parts generating the picture. It is capable of 24/7 operation perfect for even the most demanding installation. The Duracore laser light source comes with a 3 year / 20,000 hour warranty guaranteeing the dependability. With a wide 1.8x optical zoom lens and great lens shift the ZU720T is a perfect candidate for replacing a previous installation.

  • World’s first 7,500 Lumens laser professional projector with fixed lens*
  • IP5X certified optical system for stable brightness output &20,000 hours maintenance free
  • Support 360-degree & portrait mode &24/7 operations
  • Powered fixed lens at 1.8x zoom range
  • Support 4-corner adjustment &PIP/PBP
  • Built-in blending/warping
  • Full HD 3D supported
  • Dimmable Brightness (down to 30%)
  • The ZU720T is the world’s first 7,500 lumens, WUXGA projector for the ProAV sector with fixed lens and support of wide 1.8 zoom.

ZU720T features Optoma’s DuraCore technology with a 20,000 hour lamp-less laser light source enclosed in an IP5X certified optical engine to ensure reliability and minimal maintenance during its lifetime resulting in low total cost of ownership. Designed to suit different installation environments, the ZU720T includes 360-degree & portrait projection, 24/7 operation capabilities, and ultra wide lens shift range.

*Comparison among all professional laser projectors in the 7,000-8,000 lumen range as of September 2020.

Optoma DuraCore Laser Technology – Brighter for longer

DuraCore

Industry leading lifetime is achieved using Optoma’s new DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design, and light source lifetime at 20,000 hours.

zu720t duracore laser

Airtight optical engine

Precision engineered with an IP5X Certified system, the ZU720T has an airtight engine that resists dust particles and ensures a long lasting, reliable and practically no maintenance light source of up to 20,000 hours. The ZU720T laser light source is free of mercury and environmentally friendly compared with traditional lamp-based projectors.

zu720t ip5x rated

Advanced Thermal Design

A mixed combination of long and short heat pipes increases the heat dissipation by 10% and the fan running speed is lowered and results in quiet operation.

zu720t cooling

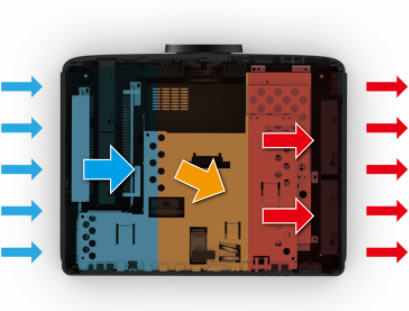

Optimized Cooling System

The inner components placement creates a flow field that requires min. air flow. The efficient cooling also contributes to the ZU720T’s low noise operation.

Quick start-up and shutdown

The ZU720T features quick start-up and shutdown and reaches full brightness quickly. To maximize energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Total cost of ownership

For demanding applications the total cost of ownership of a projector is not in the purchase cost, but in expensive maintenance and service. ProScene projectors require very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimized.

zu720t airflow

Ultimate Color Performance

Image quality

Where detail really matters, the full WUXGA (1920 x 1200) resolution offers 15% more pixels than 1080p. This enables unscaled Full HD video and extra detail. Optoma laser projectors have adopted DLP® micro-mirror technology which provides highly efficient bright images with high contrast, maintaining precise color accuracy and natural real-world color reproduction.

DLP® technology

DLP® technology from Texas Instruments® is widely recognized and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst other technologies may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours. Images remain accurate, and colors suffer virtually no degradation over time.

zu720t dlp

Precision optics

High quality optical elements maintain optimum sharpness and focus uniformity over the entire image. Uncompromising optical quality delivers extremely low color flare and chromatic aberration resulting in a crystal clear, high contrast image.

zu720t optics

Installation Friendly & Flexibility

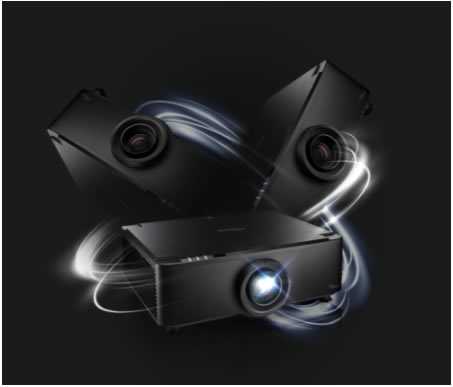

360° and portrait projection capability

Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.

zu720t 360

24/7 operation

All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.

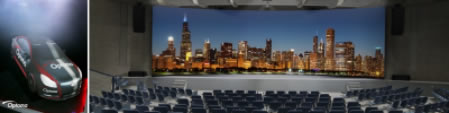

Built-in Warping & Edge Blending

User friendly PC interphase for multiple unit warping &edge blending adjustments. Massive images can be achieved within time for a cup of coffee without the need to bundle external image processing boxes, lowering the budget for complex projects. Carefully calibrated FW and gamma adjustments will provide smooth seamless blends.

zu720t warping

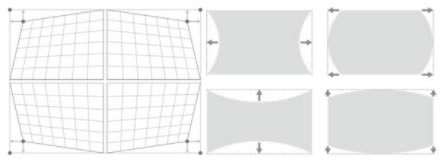

4 Corner Adjustment

4-corner adjustment, Pincushion adjustments, Horizontal/Vertical keystone adjustments to fit all scenario needs.

zu720t corner adjustment

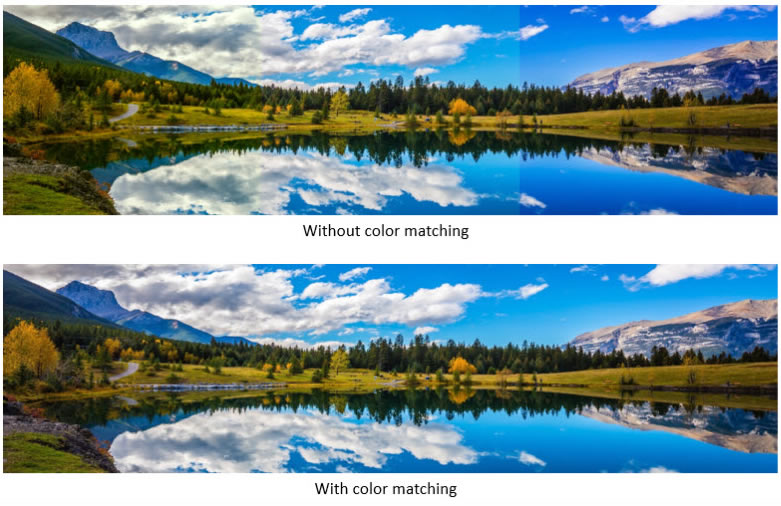

Colour matching

This projector has a color matching system, which combined with accurate measurements can create seamless blends every time.

zu720t colour matching

Ultimate Control

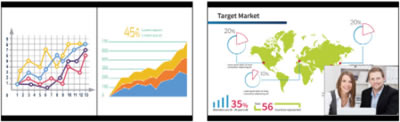

Picture by picture / picture-in-picture

The ZU720T supports picture-by-picture and picture-in-picture. Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

zu720t picture in picture

Versatile System Integration Control Protocols

Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing nearly all aspects of the ZU720T to be controlled across a network, keeping you in control, wherever you are.

zu720t control

Advanced Connectivity

HDBaseT

Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

zu720t hdbaset

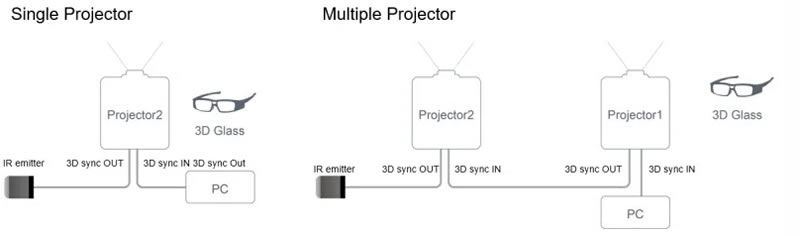

3D Sync In & Out

Flexibility for projects with complex 3D set up to ensure the projectors and the 3D shutter glasses are in sync.

zu720t 3d

Advance Features

Constant Power Mode

There are 4 adjustable steps to control the laser power 100/80/65/50%. It means the brightness can dim to 50% of full brightness if the application requires.

Constant Luminance Mode

This mode is used when there is a need to keep certain brightness level for certain period of time.

Eco Mode

50% of original brightness.

Extreme Black

In situations where only absolute darkness is required, the ZU720T can provide a total blackout that functions like mechanical shutter.

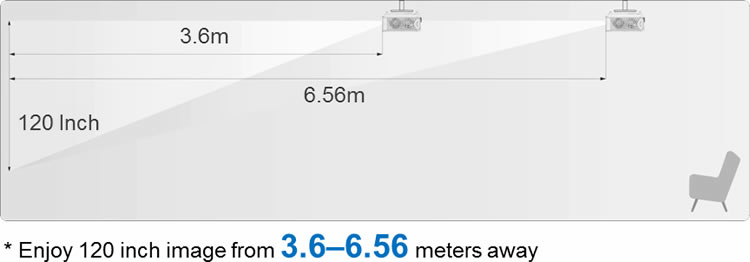

Fixed Lens with Ultra Wide 1.8 Zoom

zu720t short throw

* If the projection distance is fixed at for example 5 meters, the projection image can range from 100~150 inches

zu720t zoom

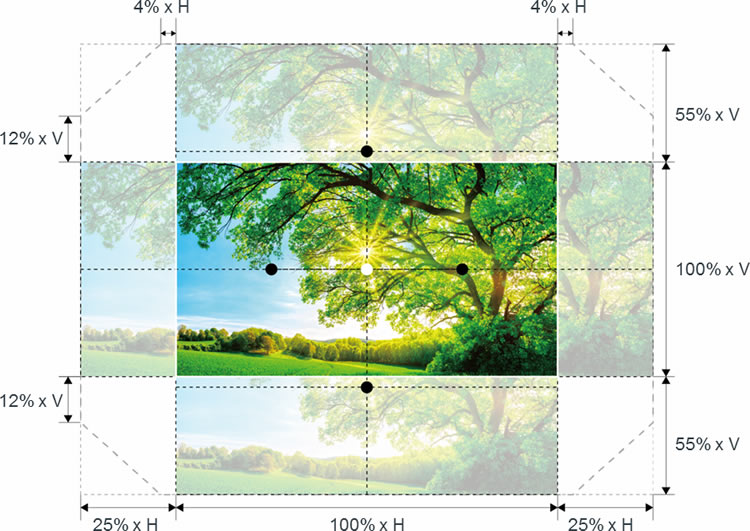

Full lens shift range

zu720t lens shift


Specifications
Display Technology

DLP

Native Resolution

WUXGA 1920 x 1200

Brightness

7,500 ANSI lumens

Contrast

1,000,000:1

Light Source

Laser

Light Source Life Bright

20,000 hours

Throw Ratio

1.4 – 2.5

Zoom Type

1.8x manual

Lens Shift

±55% Vertical, ±25% Horizontal

I/O Connectors

HDMI x3, USB-A x2, USB-B x1, Audio In x1, Audio Out x1, VGA In x1, 3D SYNC out x1, 3D SYNC in x1, Wired Remote x1, 12 trigger x1, HDBaseT x1, RJ45 x1, RS232 x1

Keystone Correction

±40° Vertical, ±30° Horizontal

Weight (Kg)

12.7

Dimensions (W x D x H) (mm)

486 x 376 x 154 (w/o elevator feet)

Aspect Ratio

16:10 Native, 16:9 and 4:3 Compatible

Projection Screen Size

40”~ 300”

Uniformity

85%

Computer Compatibility

1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×960,1280×800, 1280×768, 1024×768, 800×600

Video Compatibility

1080p@23.98/24/25/29.97/30/50/59.94/60Hz 1080i@50/59.94/60Hz 720p@50/59.94/60Hz 576p, 480p

3D Support

Full 3D

Horizontal Scan Rate

15 – 91kHz

Vertical Scan Rate

24 – 85Hz (120Hz for 3D)

Displayable Colors

1073.4 million colors (10 bit)

Noise Level

27 dB (Eco mode)

Power Supply

100–240V, 50–60Hz, auto-switching

Power Consumption

Standard display mode with Constant Power Mode, Typical 530W +/- 15% @ 110VAC, Typical 510W +/- 15% @ 220VAC, Standard display mode with ECO(50%) power mode, Typical 330W +/- 15% @ 110VAC Typical 320W +/- 15% @ 220VAC

Lamp Type

Laser Phosphor

360-operation

Yes

Portrait Mode

Yes

Conformance

CE, TUV-GS, CB

RoHS

RoHS and WEEE


What's in the Box
remote control
Remote Control
power cord
Power Cord

Rear Panel

zu606t rear panel
