Viewsonic PX748-4K High Brightness 4K Projector

PX748-4K



4K


Viewsonic Logo


Your Price: $2199
PREORDER - STOCK DUE 7th July

Flat Rate Freight
$22 Insured Australia Wide.
Pick up Available


Quick Facts:
Viewsonic PX748-4K Throw Distance Chart (Examples for common Sizes)
T/R: 1.13-1.47:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.3m to 2.9m
100" (16:9) 2130x1200mm From 2.4m to 3.1m
110" (16:9) 2435x1370mm From 2.8m to 3.5m
120" (16:9) 2657x1494mm From 3.0m to 3.9m
135" (16:9) 2990x1681mm From 3.4m to 4.3m
150" (16:9) 3320x1867mm From 3.8m to 4.8m
SPECIFICATIONS
Native Resolution: UHD 3840 x 2160 16:9
Brightness: 4000 ANSI Lumens
Maximum Contrast: 12,000:1
Weight: 2.8kg
Fan Noise: 32 / 27db (eco)
Warranty: 3 Years (+1 Year $135)
Lamp Warranty: 12 Months / 1000 Hours
Lamp Life Up To: 20,000hrs
FEATURES
- Rec. 709 Colour Calibration
- 1.3x Zoom
- Horizontal & Vertical Keystone
- 2x HDMI connections
- USB-C Display Compatible
- HDR Compatible
- 12 Volt Trigger
- 10W Speaker Inbuilt
- Fast Gaming Modes

Viewsonic PX748-4K 4,000 Lumens UHD Projector With HDMI

Built for the modern home the Viewsonic PX748-4K is designed to deal with a living room style environment where light may be sneaking in and a blackened home theatre room is not possible. With a powerful 4000 lumen brightness the PX748 can produce a bright vibrant image and still has decent contrast and colour. The 4K UHD resolution makes for incredible visuals with every last detail reproduced perfectly across 8.4 million pixels. The PX748-4K also features a long lamp life of up to 15,000 hours so is economic to run long term.

Features

  • True 4K HDR visual experience
  • 4,000 ANSI Lumens offering bright images in any environment
  • Direct Big-screen streaming via USB Type-C
  • 4.2ms Ultra-Fast Input & 240Hz high refresh rate
  • Warping, auto V keystone and 1.3x zoom for flexible installation
  • Home automation via LAN control and 12V trigger

OVERVIEW

The PX748-4K is a 4,000 ANSI Lumens 4K home projector that shines in value and brightness and delivers pixel-perfect visuals in true 4K clarity with HDR/HLG support. Experience a whole new level of gaming with 4.2ms Ultra-Fast Input, a 240Hz refresh rate, and USB Type-C connectivity for direct streaming from Nintendo® Switch. Set up faster and easier than ever before with powerful warping, auto V keystone, H/V keystone, and 1.3x optical zoom, capable of creating a screen of up to 300” on any surface. Adding on to that is the LAN control capability compatible with home automation systems and 12V trigger output, making the PX748-4K a perfect addition to your smart home.



PX748-4K Living Room

True 4K Clarity with HDR/HLG Support
In addition to the stunningly detailed images that true 4K resolution can offer, the projector also supports HDR and HLG content to produce more dynamic images and bring flat images to life with more displayable information in the darker and brighter parts of a scene.

True 4K HDR/HLG

PX748-4K 4K HDR

High Brightness
Packed with 4,000 ANSI Lumens, the projector is guaranteed to produce high brightness suitable for well-lit environments.

4,000 ANSI Lumens


PX748-4K high Brightness

USB Type-C for Direct Streaming and Recharging
The projector’s USB Type-C* connection puts a fun twist on streaming videos by allowing you to project content directly from your phone, laptop or tablet while also charging them simultaneously. You can even play Nintendo® Switch games on the big screen via direct connection without the dock.

Learn more: https://youtu.be/fTrL7t3NeiM
*Only available for devices that support USB Type-C video streaming.
*For iPhone and iPad, users need to buy an Apple-authorized Lightning-to-HDMI adapter for content display via the HDMI port.

PX748-4K high Brightness

Ultimate Sports Viewing Experience with Ultra-Fast Input
Say goodbye to motion blur due to input lag. With our 4.2ms Ultra-Fast Input and hyper-responsive 240Hz refresh rate, plus the microsecond-level response time, you can watch with low delay and seamless viewing of fast-moving objects that will bring your sports-viewing-experience to the next level.

*To enable 4.2ms Ultra-Fast Input, turn it on in Advanced Settings and make sure the input content is with 240Hz refresh rate. When enabled, the highest resolution supported is 1080p.
**The response time stated refers to the reaction time of DMD chip.

4.2ms Ultra-Fast Input & 240Hz Refresh Rate

PX748-4K high Brightness

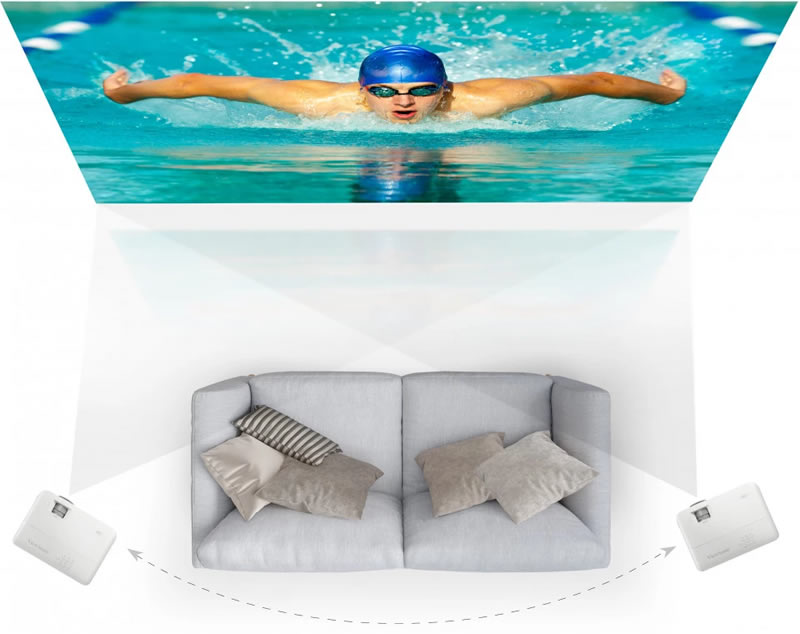

Effortless Image Adjustment
Be it on the side table in the living room, bedroom or any other location you like, the projector can provide perfectly shaped images from any angle with comprehensive H/V keystone and 4 corner adjustment capabilities. The auto V keystone further frees you from manual adjustments no matter how you tilt the projector, up or down.

H/V Keystone & Auto V Keystone

PX748-4K high Brightness

Adaptable to Any Environment
Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location that doesn’t interfere with existing interior design while still getting the desired image size.

1.3x Optical Zoom

PX748-4K high Brightness

Perfect Projection Even on Curved Surfaces
Who says projection only works on a flat surface? With our advanced Projector Warping Tool, the distorted image can be perfectly shaped through multiple point adjustments, even when projected on spherical or cylindrical shapes.

PX748-4K high Brightness

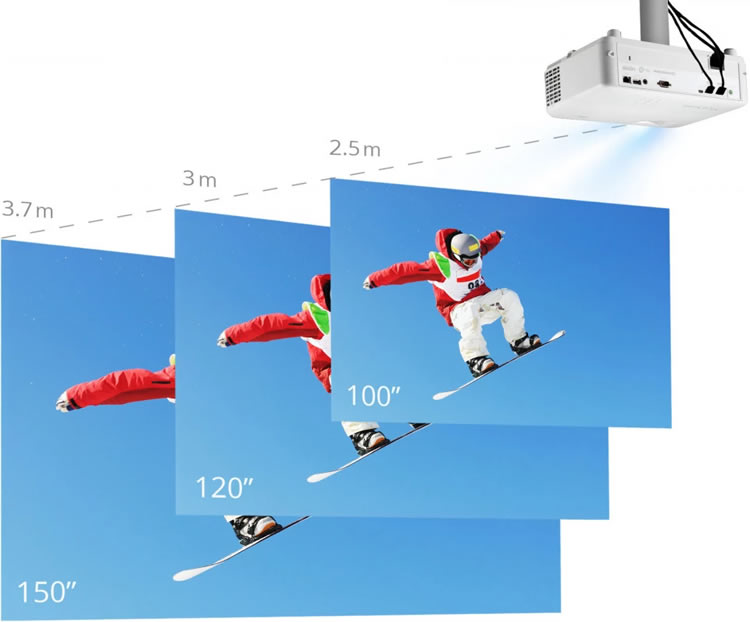

Go Big, Even in Small Spaces
Scale up the excitement with a screen size easily made larger than a TV, even in limited space. Immerse yourself in 100” of entertainment from only 2.5 m away.

1.13-1.47 Throw Ratio

PX748-4K high Brightness

Simplify Your Home with Unified Smart Systems
The PX748-4K comes with LAN control capability that is compatible with a variety of home automation systems (incl. Control 4, Crestron, AMX, PJ Link, and Network Control), making it a perfect addition to your smart home.

PX748-4K crestron AMX

Get Your Cinema All Set at Once
With 12V trigger output connectivity, just power on the projector and your home cinema will be all set, with the curtains closed and the projection screen lowered automatically.

PX748-4K 12v trigger

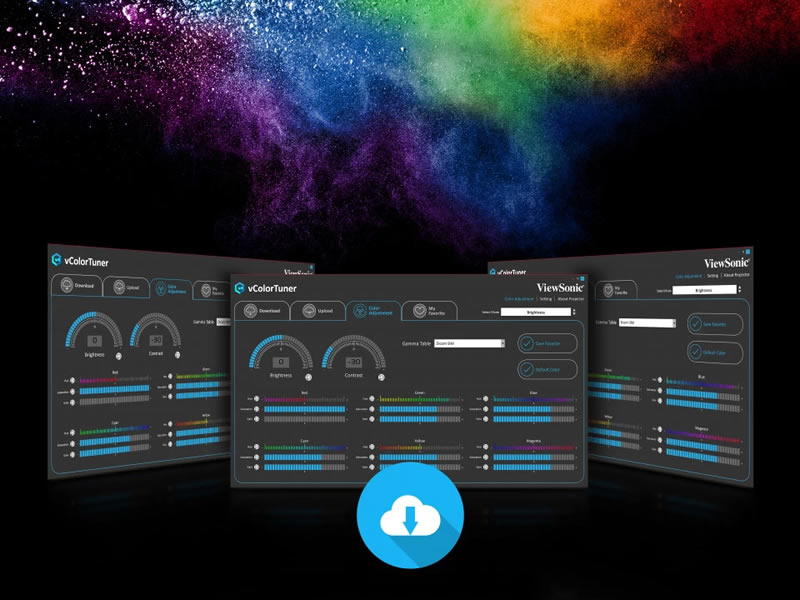

Customize Your Own Color Profiles
By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share it with others. Also, users can download other profiles from their projectors and fine-tune them as their own.

Learn more: https://youtu.be/ShwE_dswXYk

vColorTuner

PX748-4K Colour tuner

A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

PX748-4K Update

Reliable Long-Term Lifespan
The latest SuperEco+ mode technology greatly extends the lamp life of the projector from 15,000 hours to 20,000 hours – meaning 4 hours a day for more than 13 years – saving you maintenance cost and effort.

PX748-4K Lamp Life

USB Type-A Power Supply for HDMI Wireless Dongles
A built-in USB power output (5V/1.5A) can be used to supply power to HDMI wireless dongles, like Chromecast, Amazon Fire TV Stick, etc., eliminating the need for separate power adapters when streaming your favorite multimedia content.

PX748-4K USB Power

SuperColor™ Technology
ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

PX748-4K Super Colour

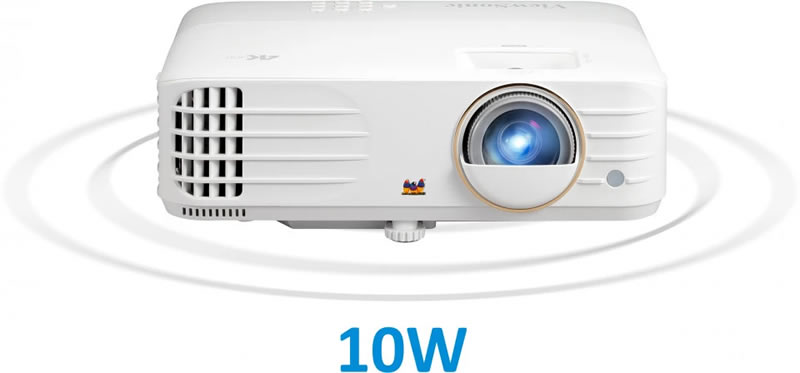

Satisfying Audio Performance
The projector is embedded with a 10W speaker to deliver a satisfying audio performance right out of the box.

10W Speaker

PX748-4K 10W Speaker

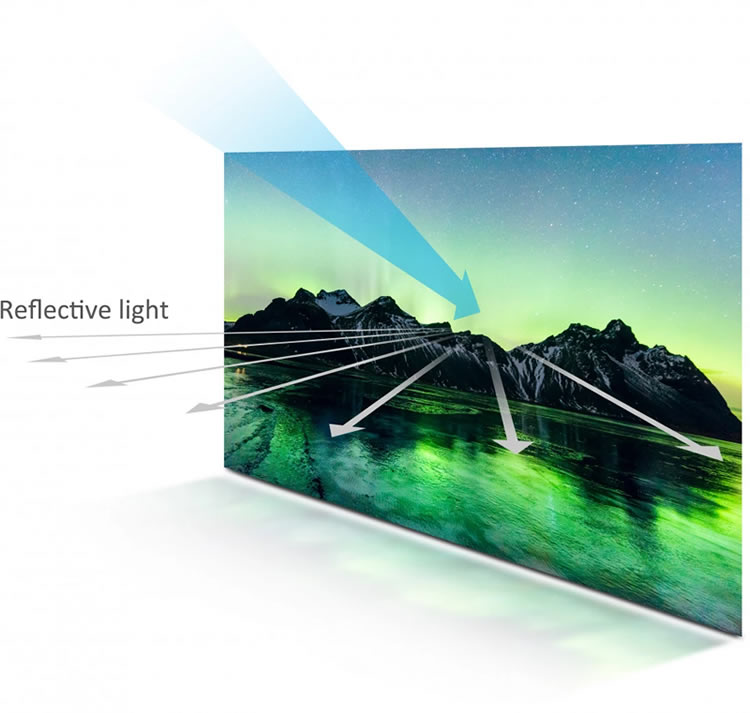

A More Eye-Friendly Viewing Experience
Utilizing reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing experience virtually blue light free, less invasive to your sight, and reduces eyestrain over prolonged viewing periods.

Eye Care

PX748-4K Eye Care





Specifications
  • Specification
    Native Resolution: 3840x2160
    DMD Type: DC3
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 240W
    Lens: F=1.94-2.12, f=12-15.6mm
    Projection Offset: 120%+/-6%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30
    Throw Distance: 0.75m~9.76m, (100
    Keystone: H:+/-40° , V:+/-40°
    Lens Shift V. Range: Up to 20% (Digital)
    Lens Shift H. Range: Up to 20% (Digital)
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 4.2ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-240Hz
  • Input
    HDMI: 2 , (HDMI 2.0b/ HDCP 1.4/2.2)
    USB Type C: 1 (5V/ 2A)
  • Output
    Audio out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/ 1.5A)
    12V Trigger (3.5mm): 1
Remote
Remote
PX748-4K Remote
Rear Panel

PX748-4K Rear Connections
